Catalina, AZ · Single-Level Guest Casita

Casita Plans

A single-level guest casita in Catalina, Arizona: master bedroom, great room, kitchen with pantry, ensuite with steam shower, and a walk-in closet, opening to the desert through full-height sliding doors on two sides. Drawn by Trinity by Design in January 2022. The wall assembly is a Thermasteel panel system finished in traditional stucco with thin stone veneer, under an engineered metal truss roof with a continuous thermal envelope.

Architecture

Plans & Elevations

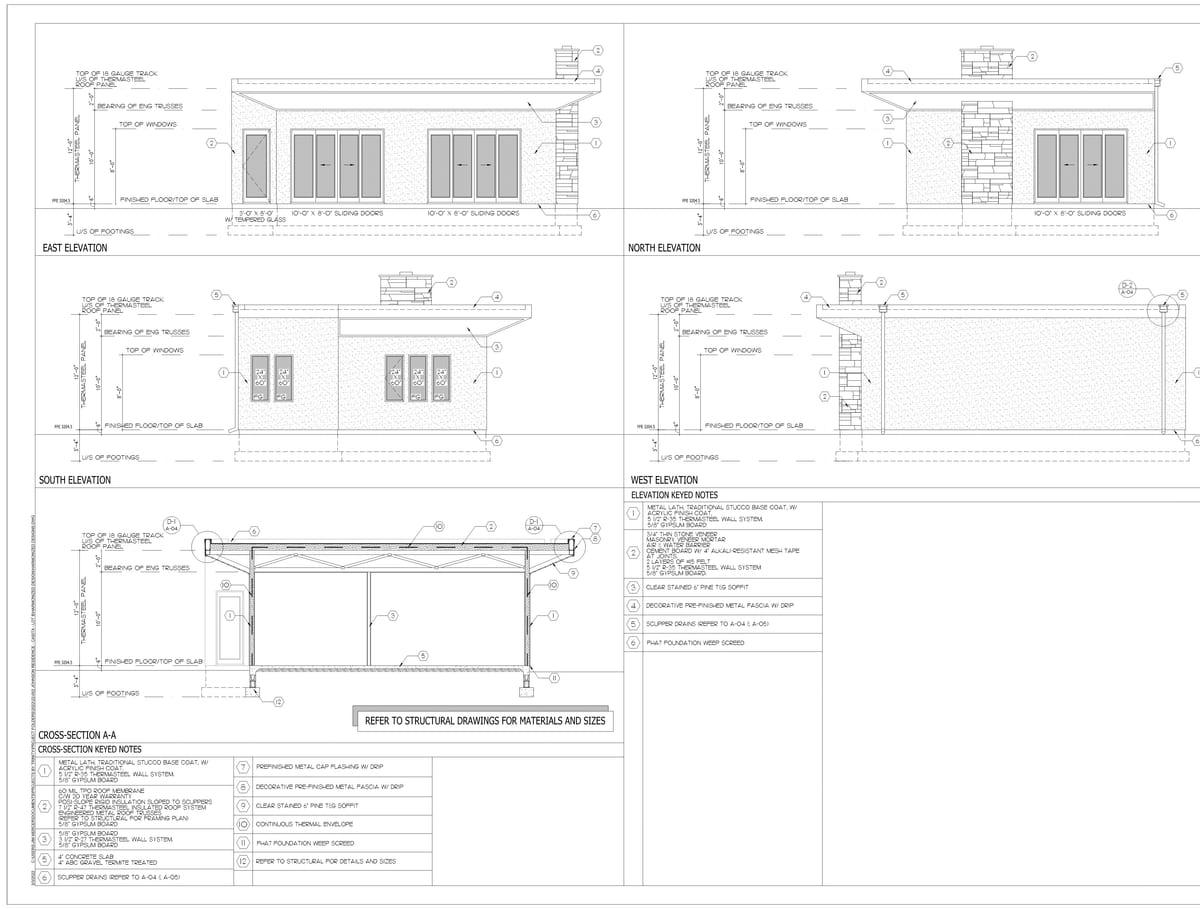

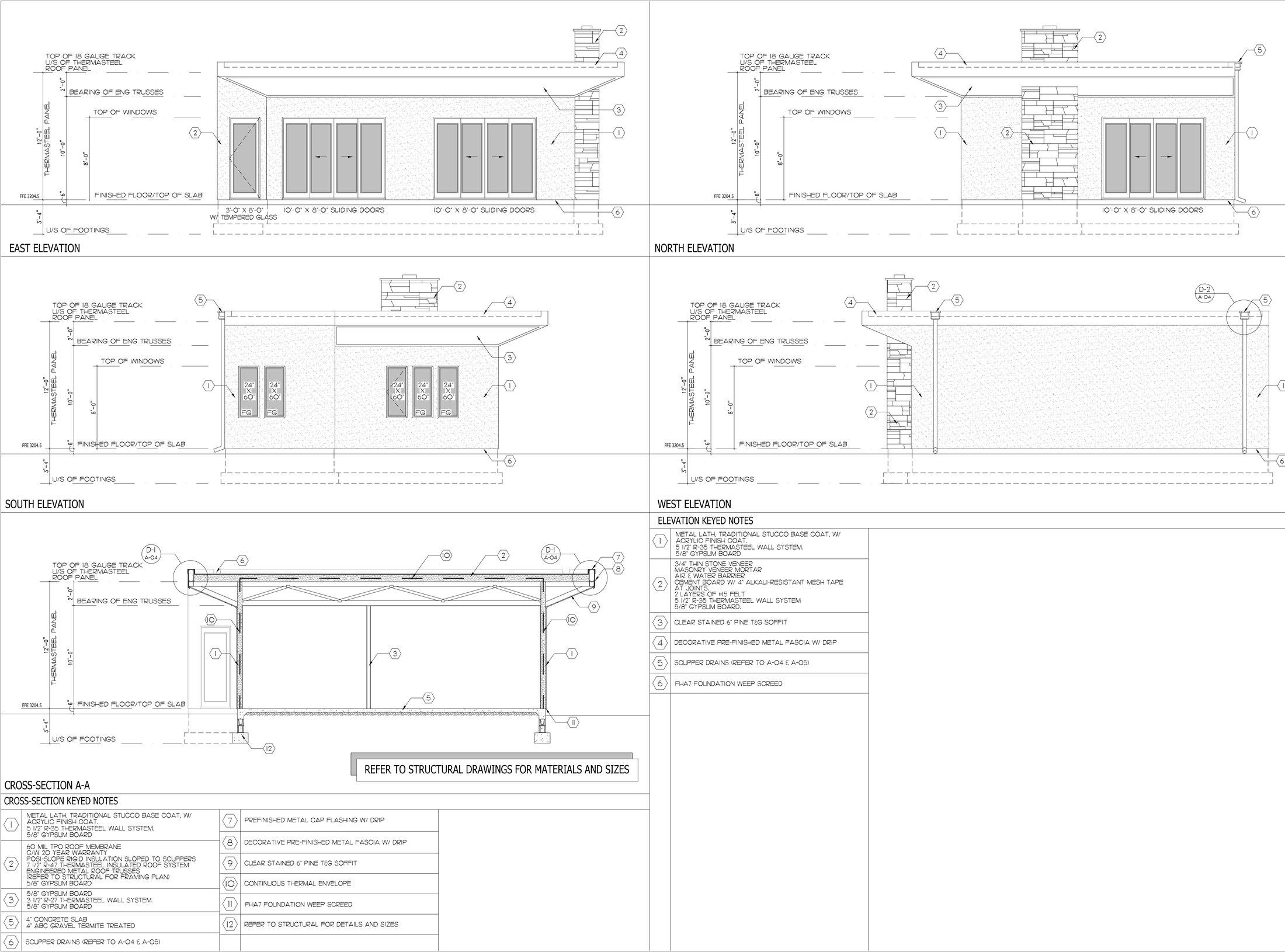

Casita east, north, south, and west elevations with cross-section A-A — East, north, south, and west elevations plus cross-section A-A, with the stucco, stone veneer, and roof assembly called out.

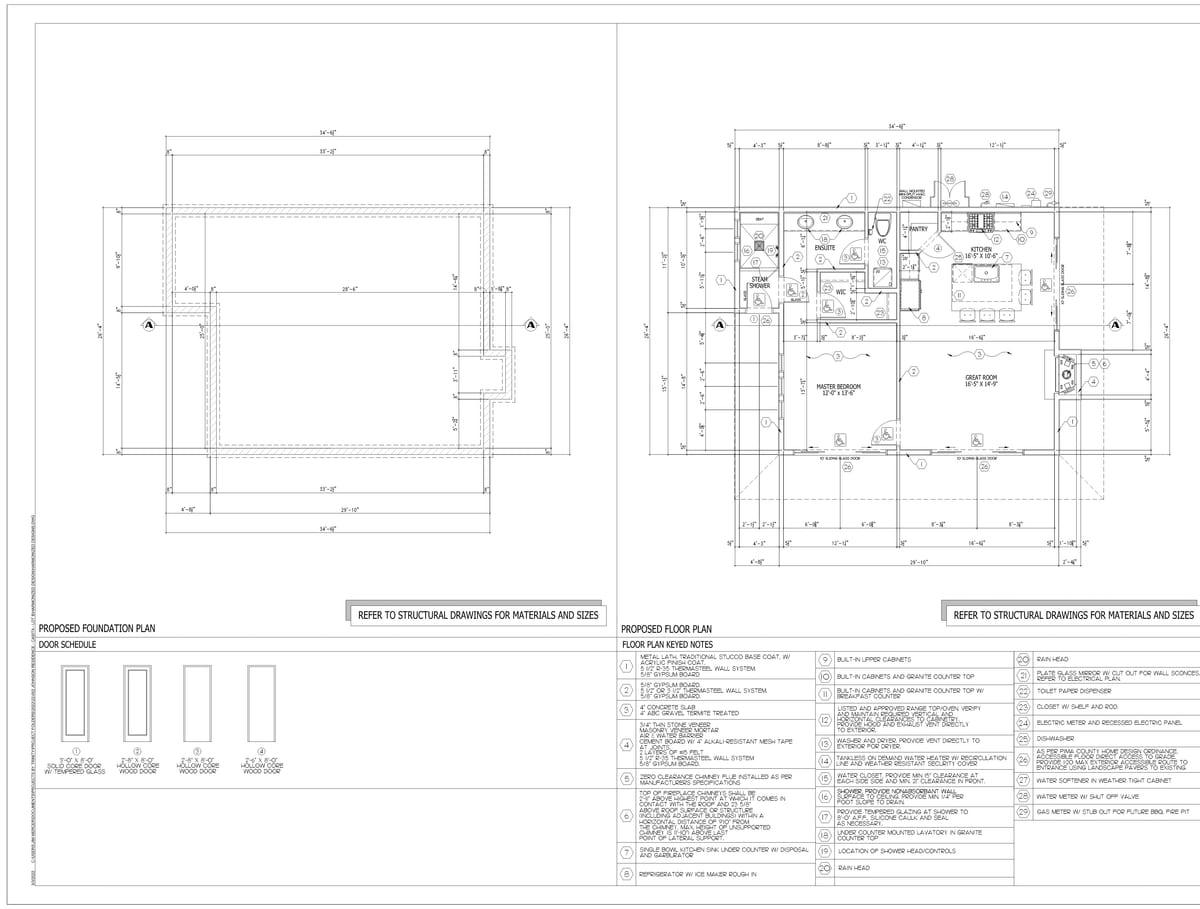

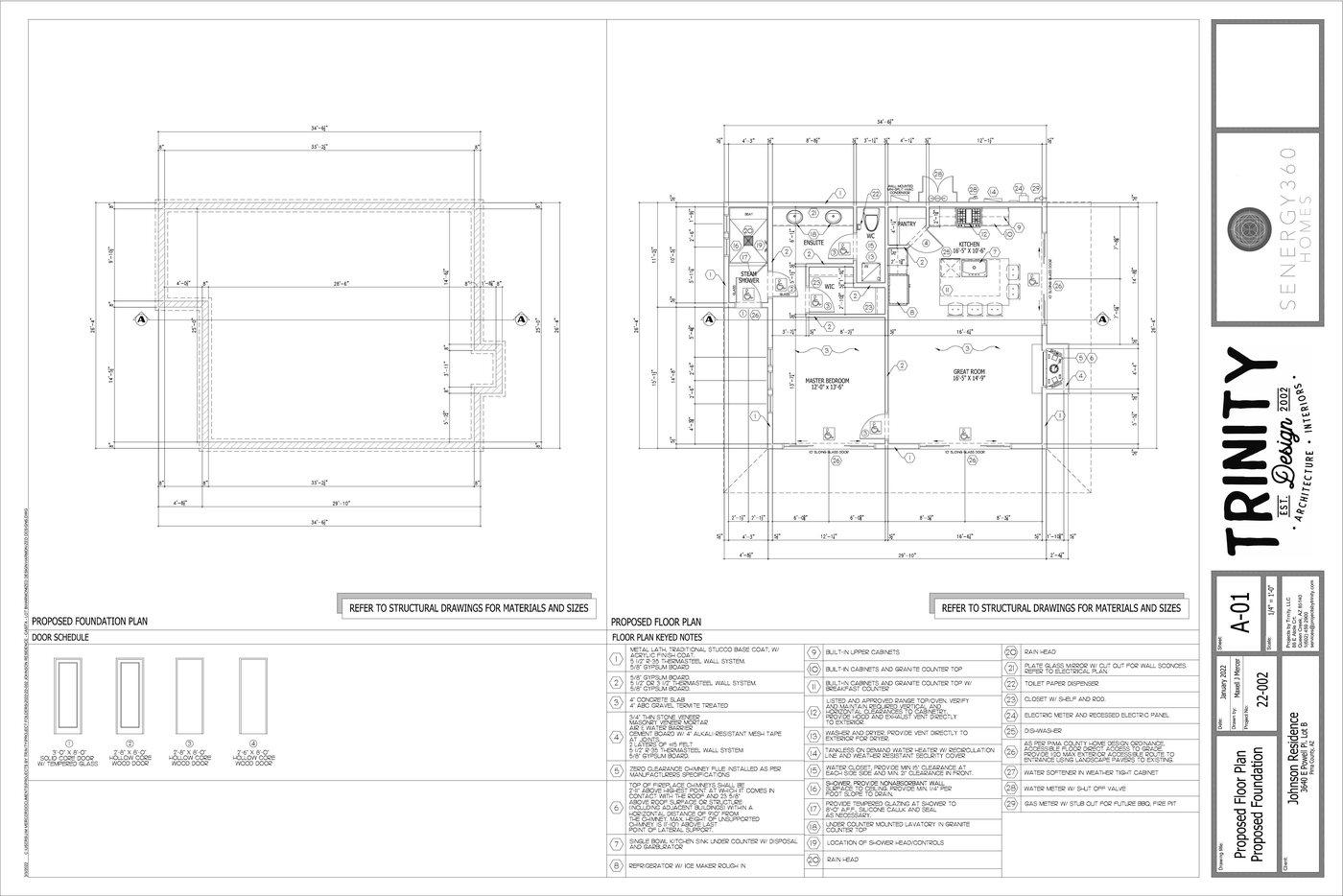

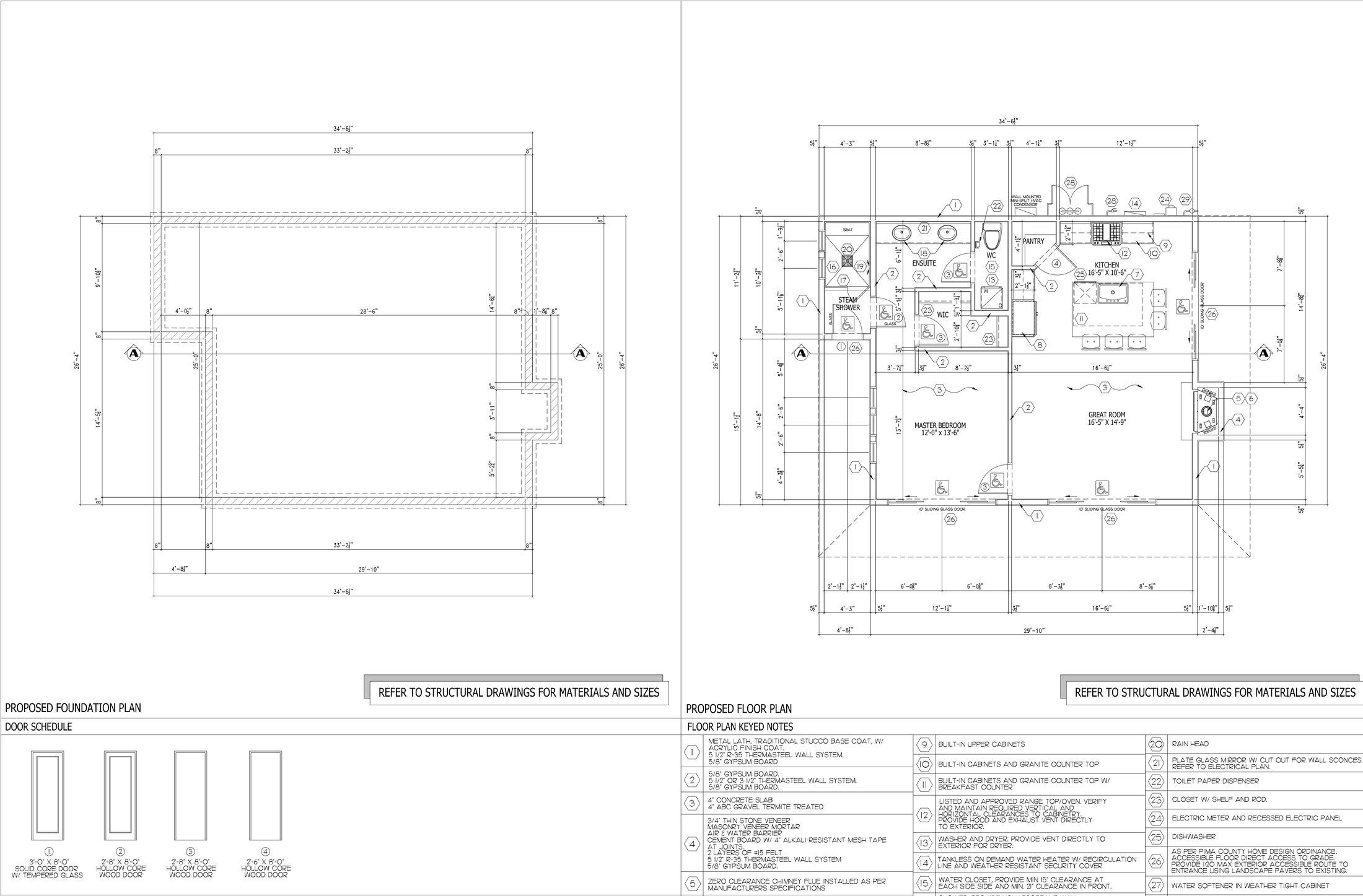

Casita proposed floor plan and foundation plan with door schedule — Proposed floor plan and foundation plan, with the door schedule and keyed construction notes.

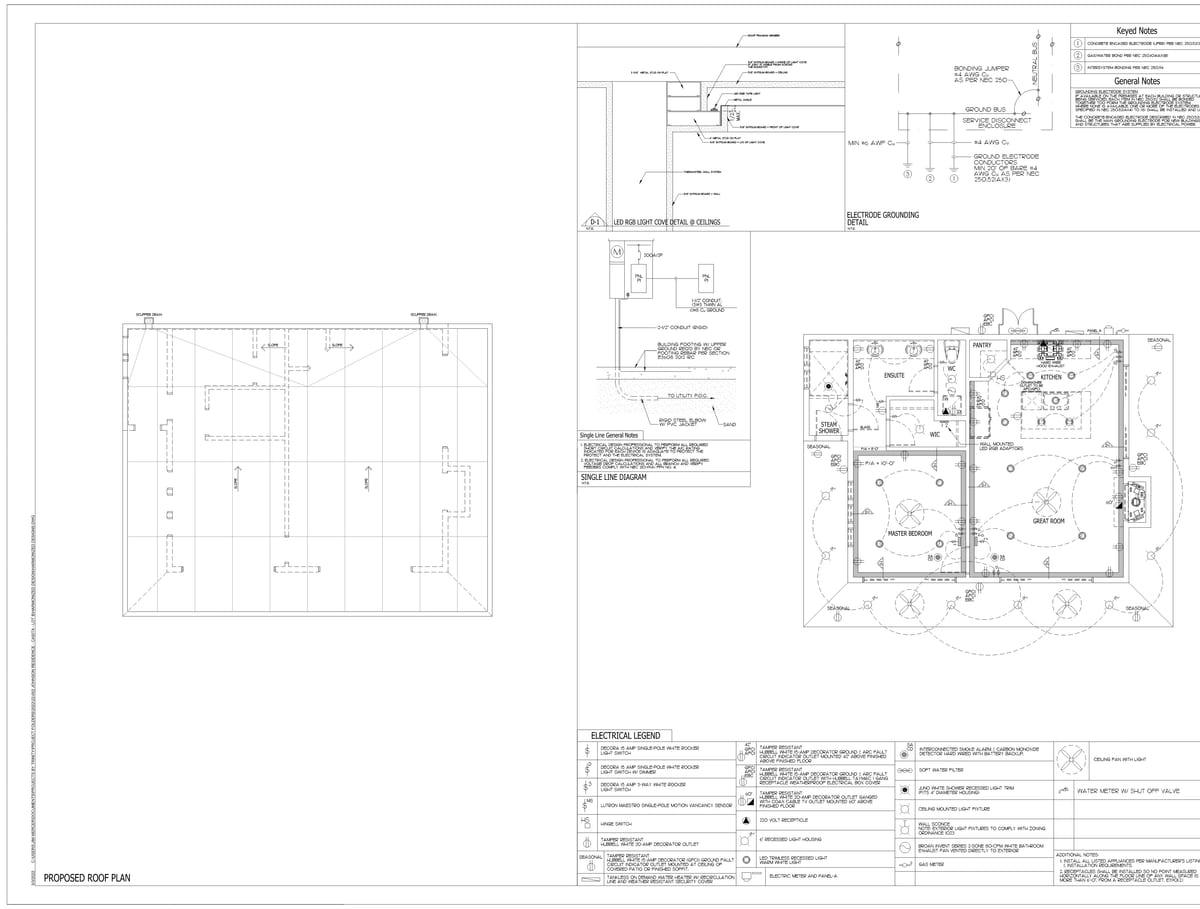

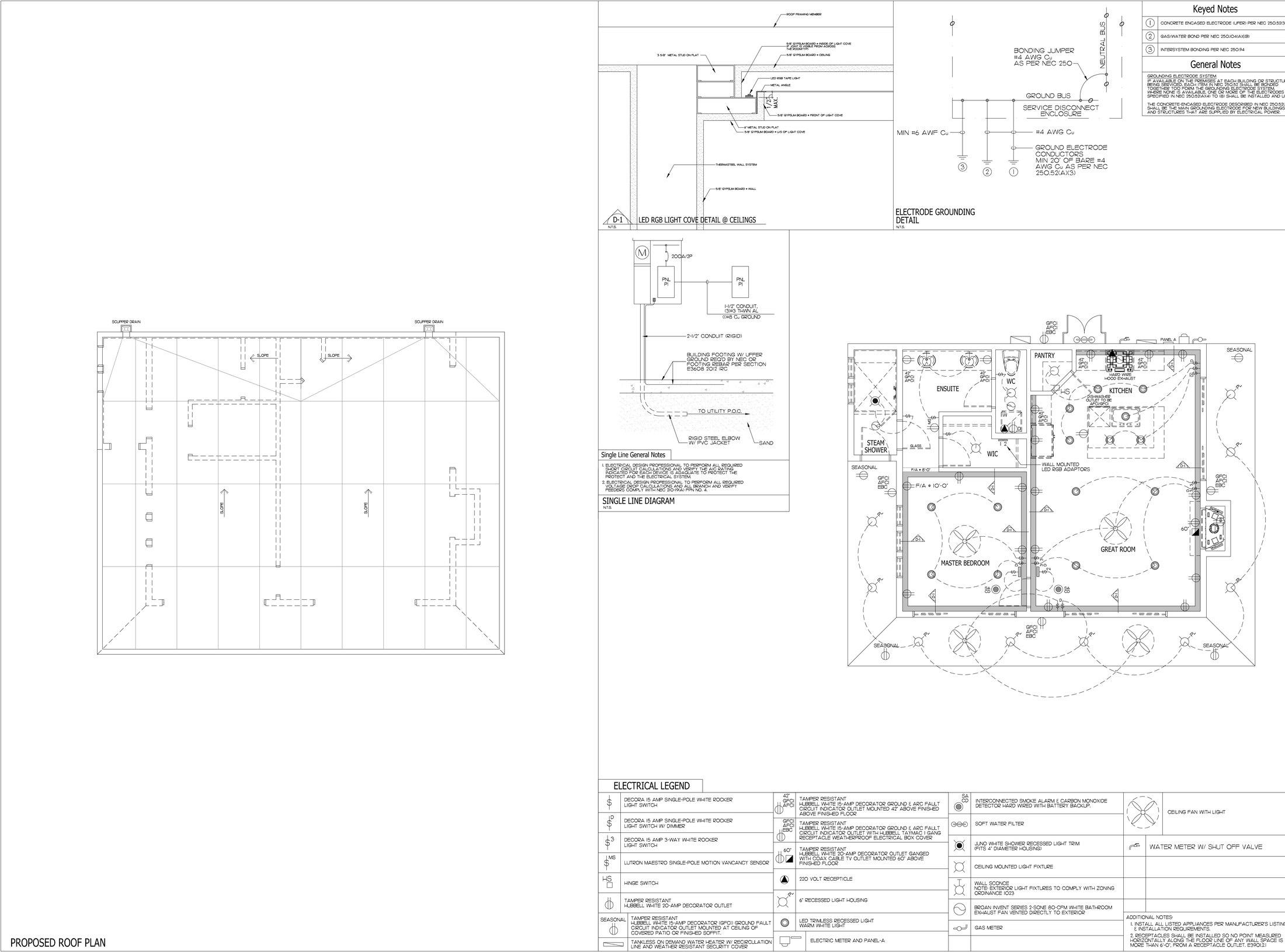

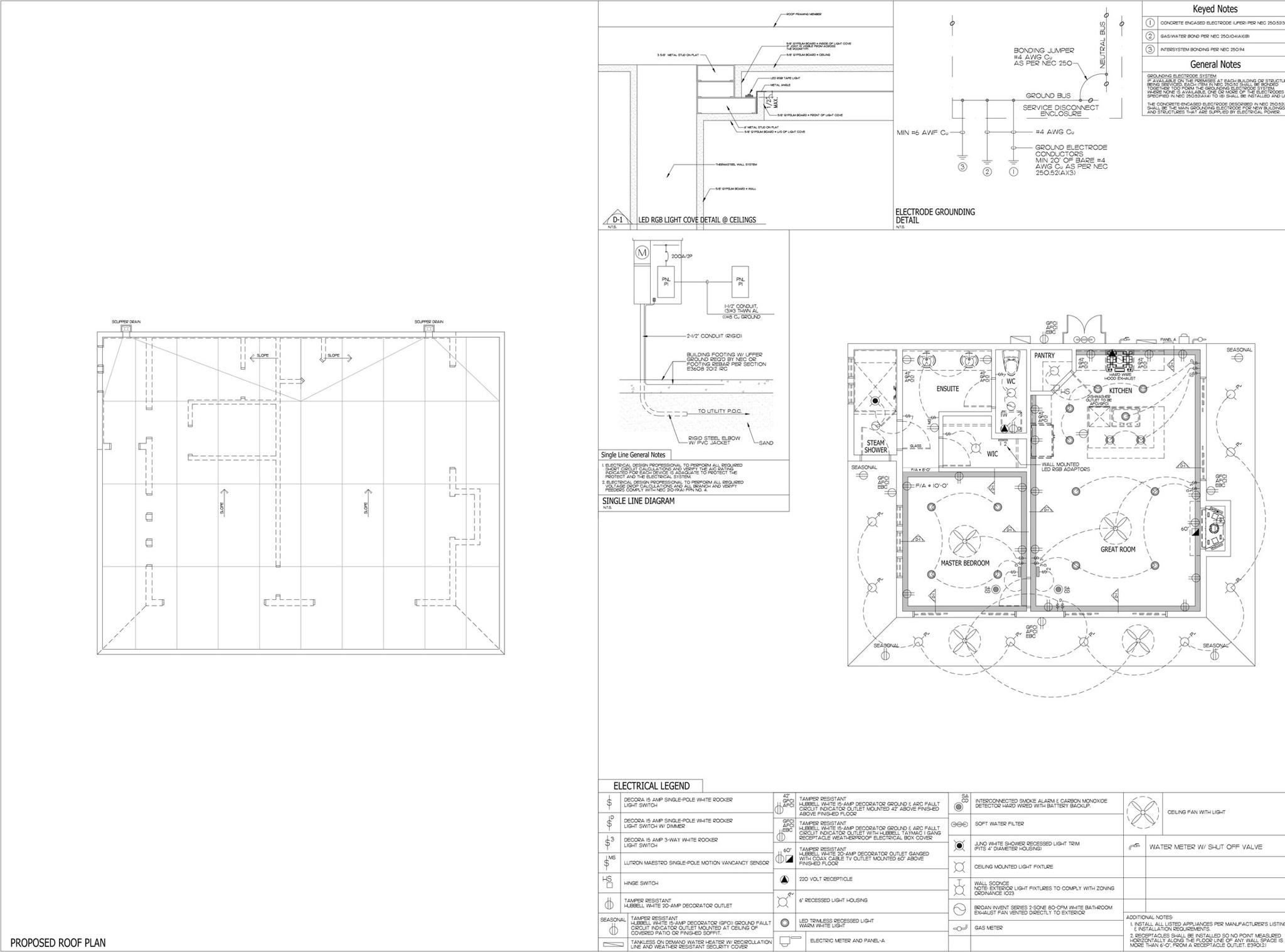

Casita proposed roof plan and electrical plan with fixture legend — Proposed roof plan and electrical plan with single-line diagram, fixture legend, and the LED cove-lighting detail.
