Catalina, AZ · Design + Build Process · 2,744 sf
The Sanctuary House

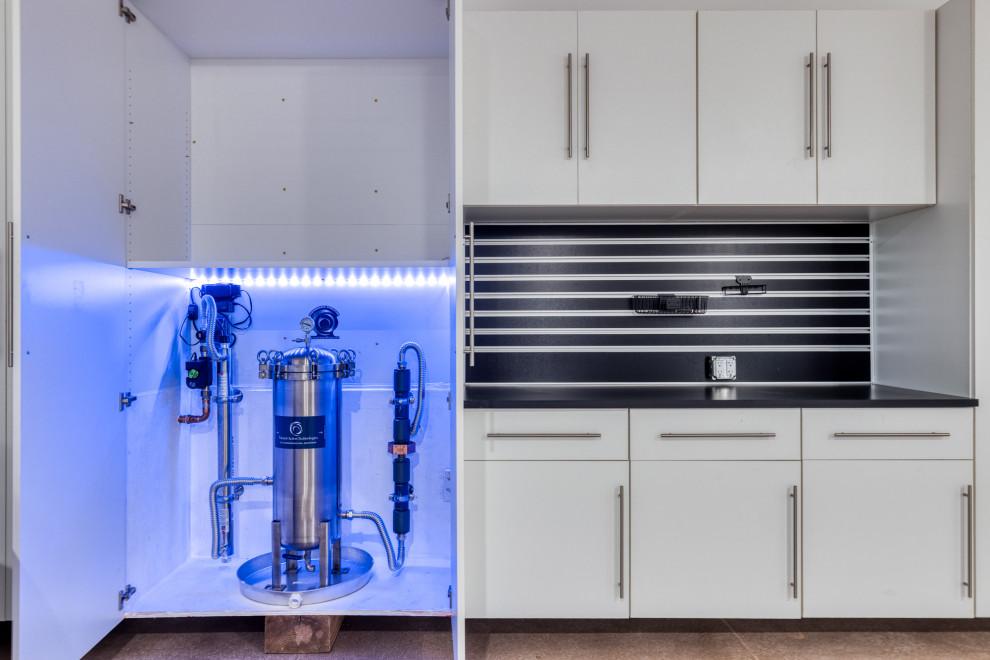

A 2,744 sf healthy home in Catalina, Arizona, built on twenty-five years of building-biology methodology and the SENERGY360 Healthy Build & Design Specifications. Holistic certification across air, materials, EMF, water, and lighting. Plan set below.
Rendering
The Sanctuary
Exterior Rendering
Watch
Project Films
The Sanctuary Film
Plan Sheets
Click a sheet to open the PDF in a new tab.

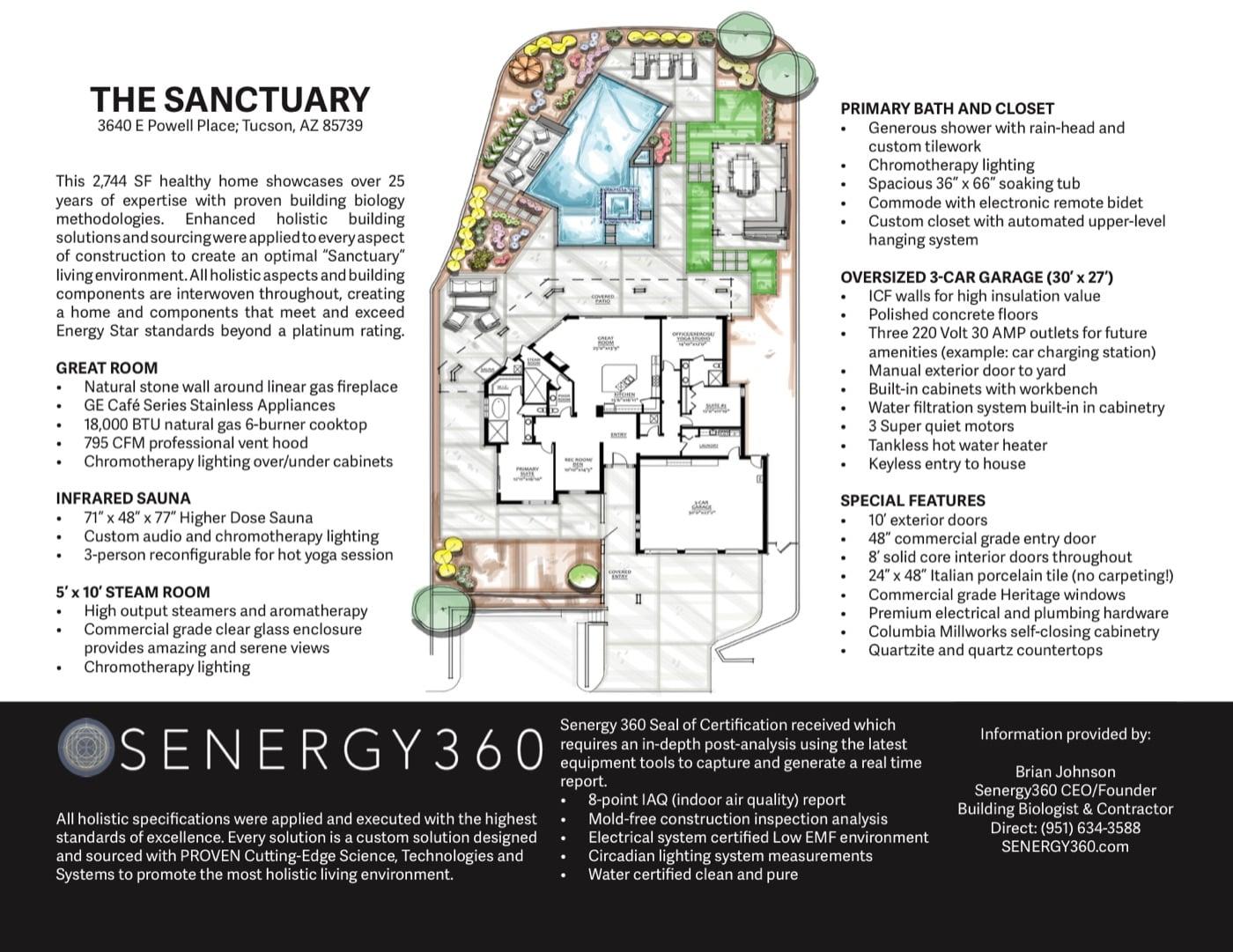

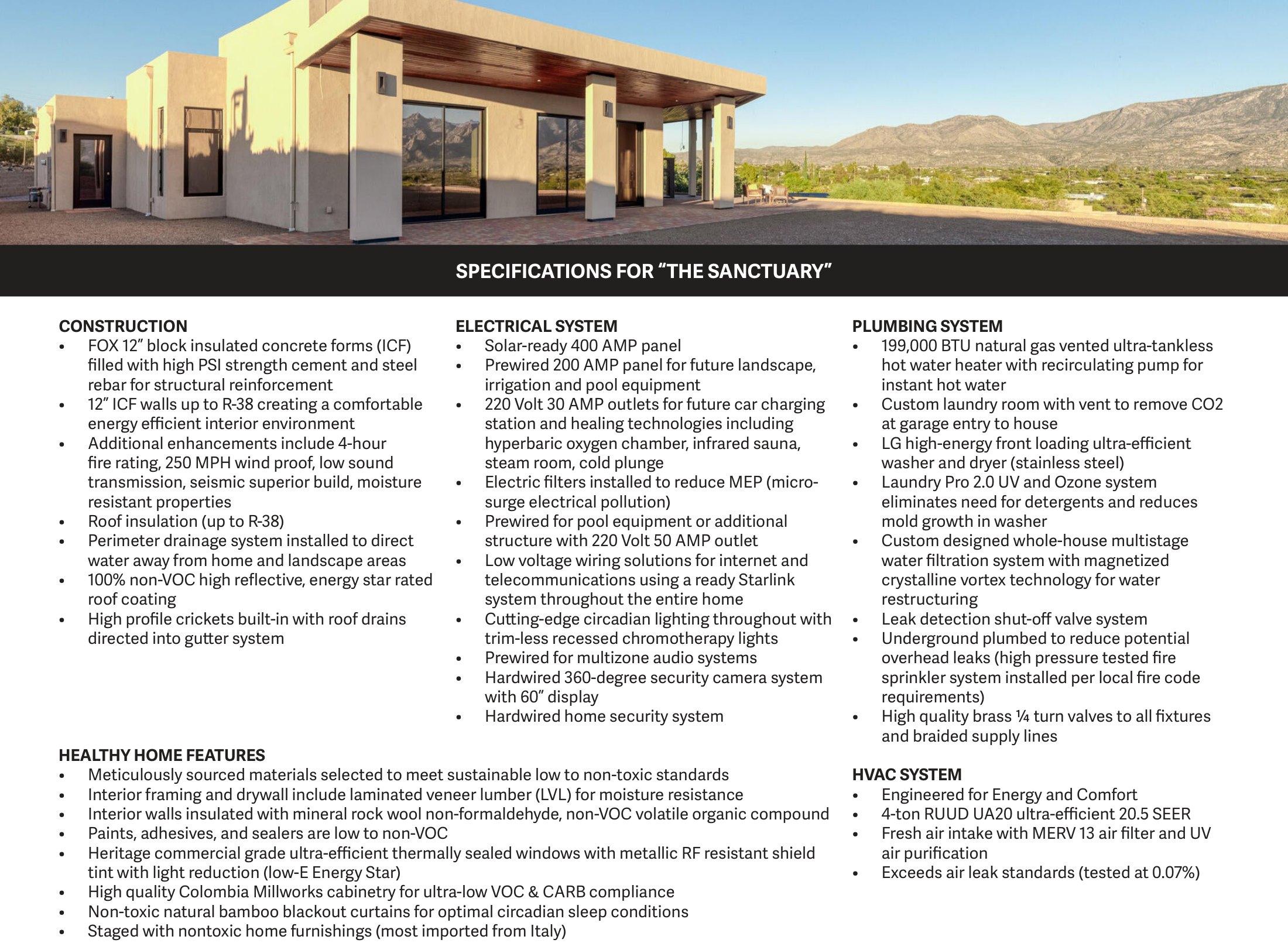

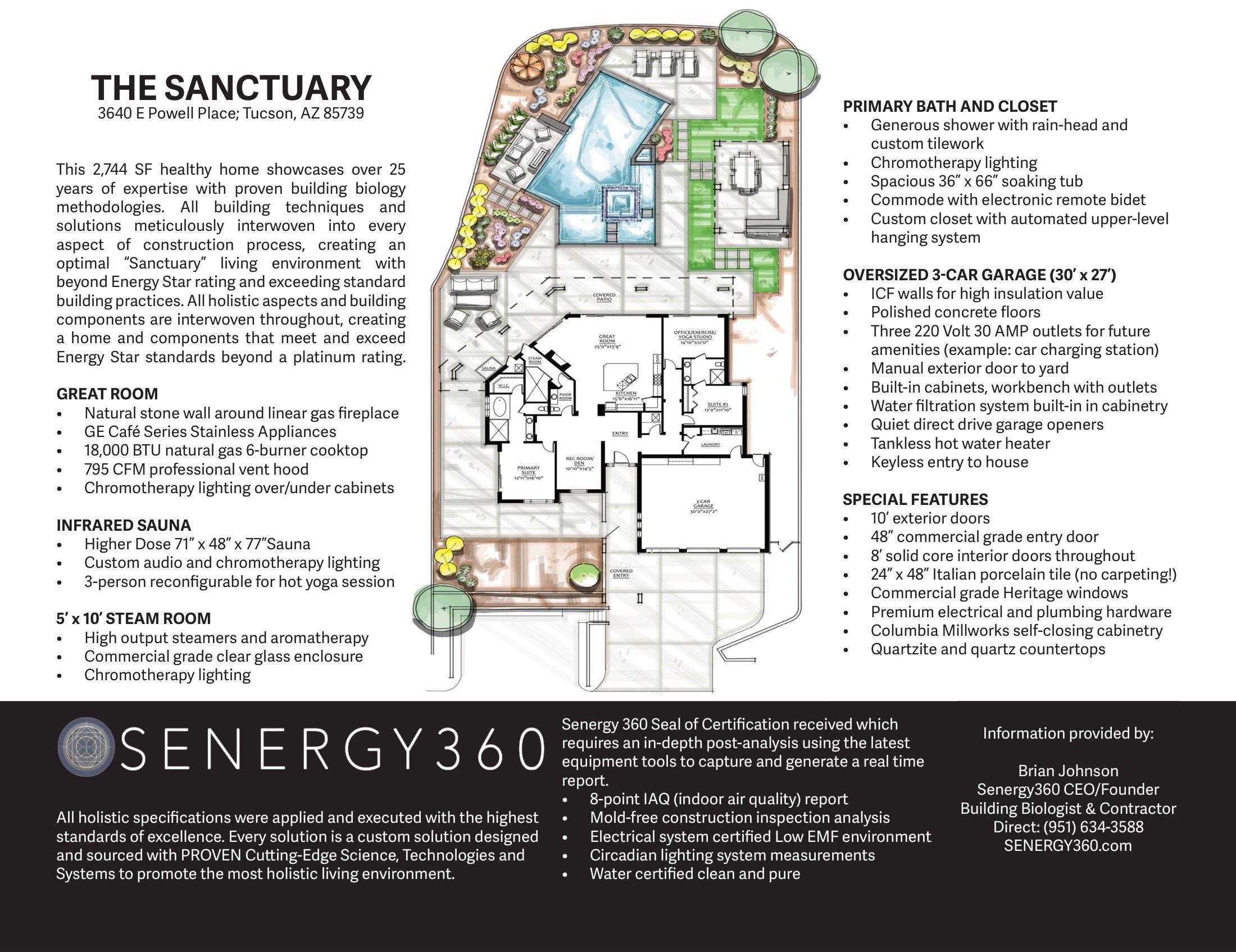

Sanctuary Flyer
2-page project overview, specifications, and certification summary.

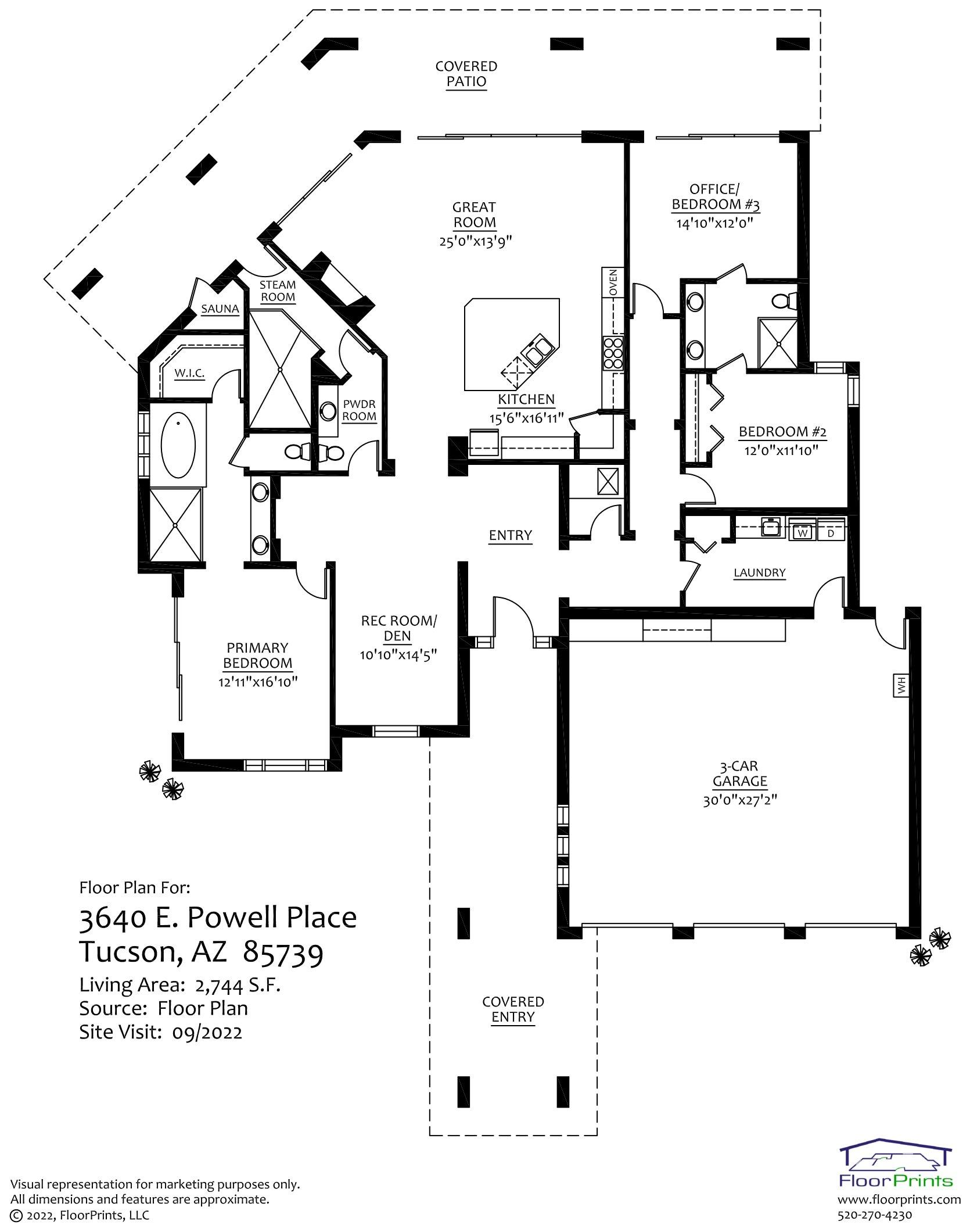

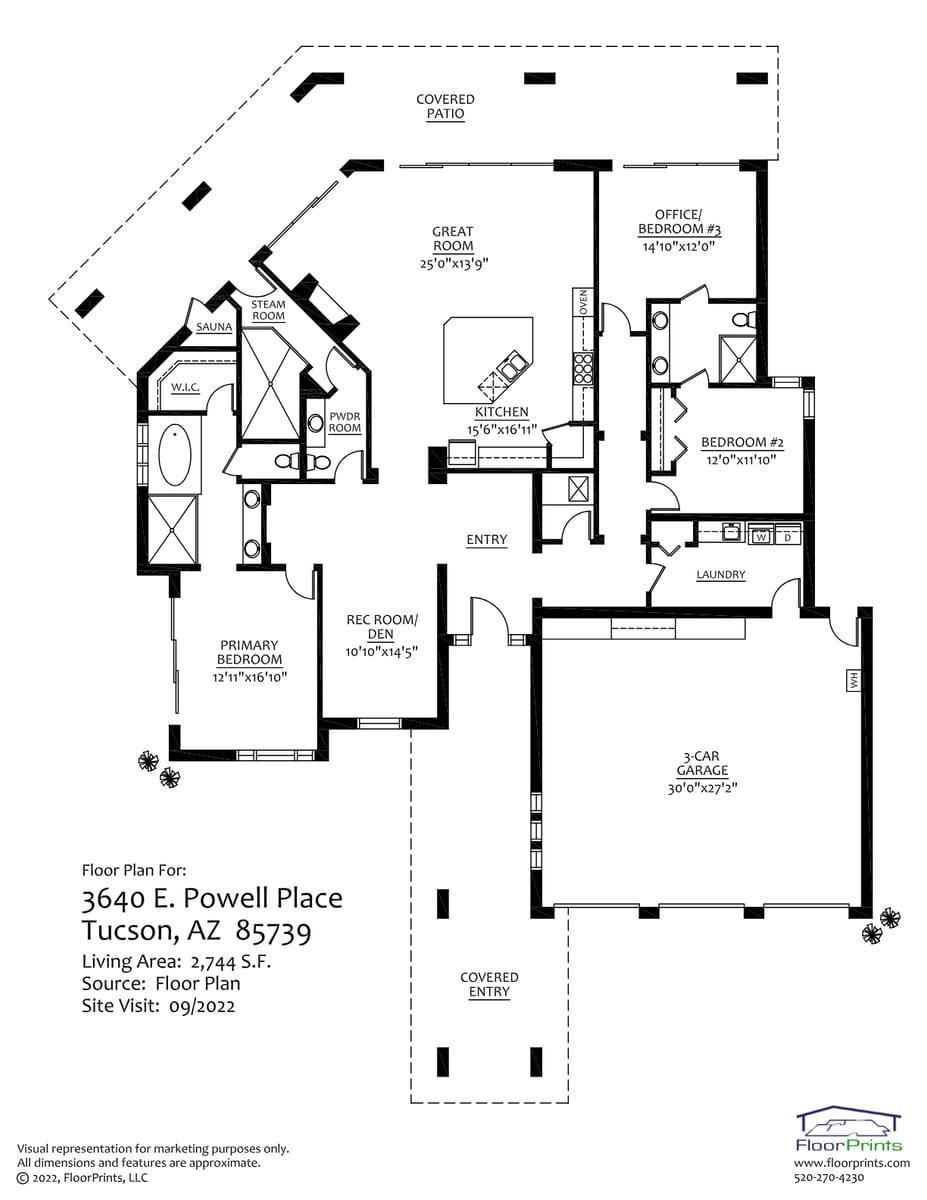

Floor Plan Overview
Marketing floor plan of the full residence: great room, primary suite, rec room/den, office, and oversized 3-car garage.

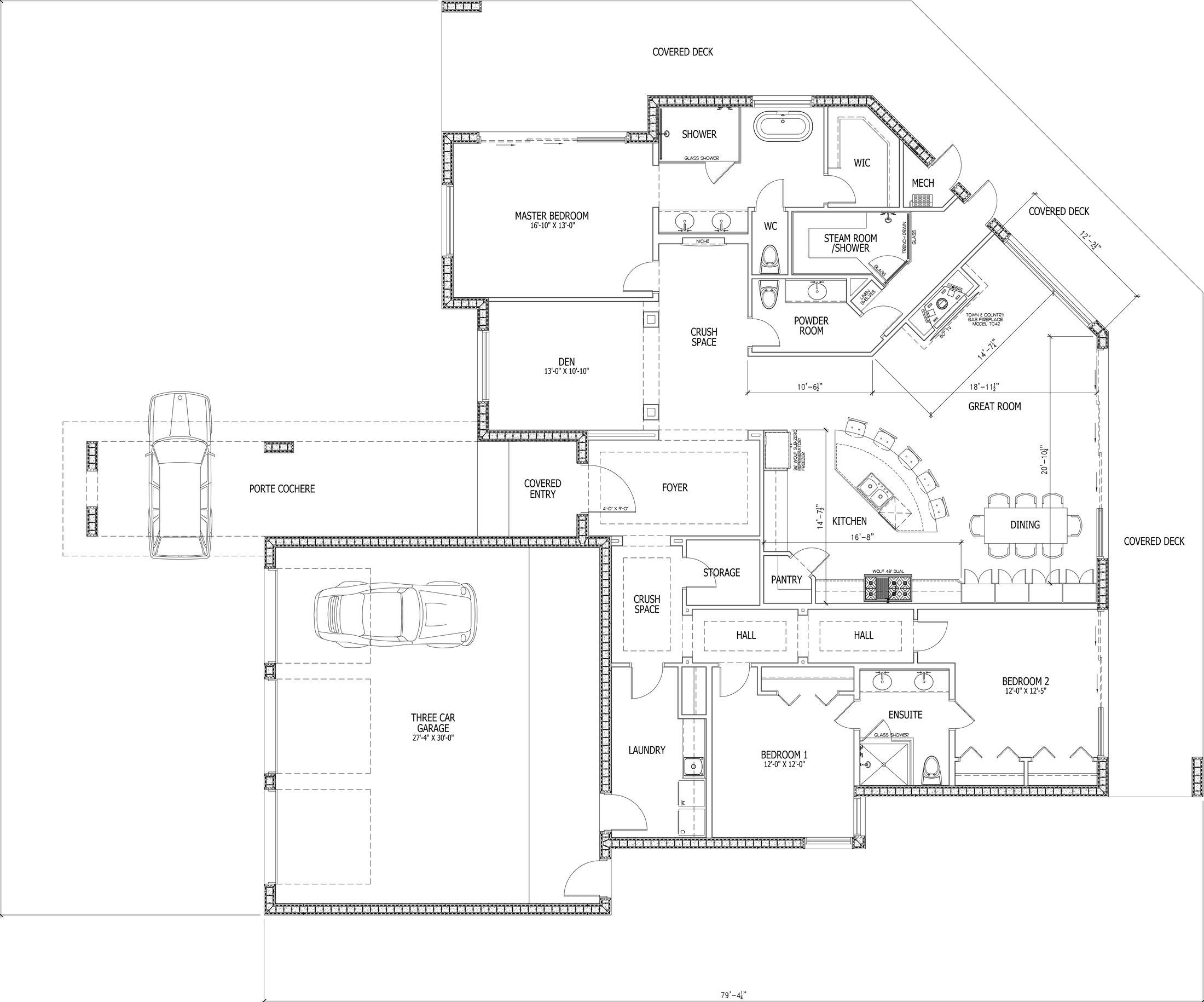

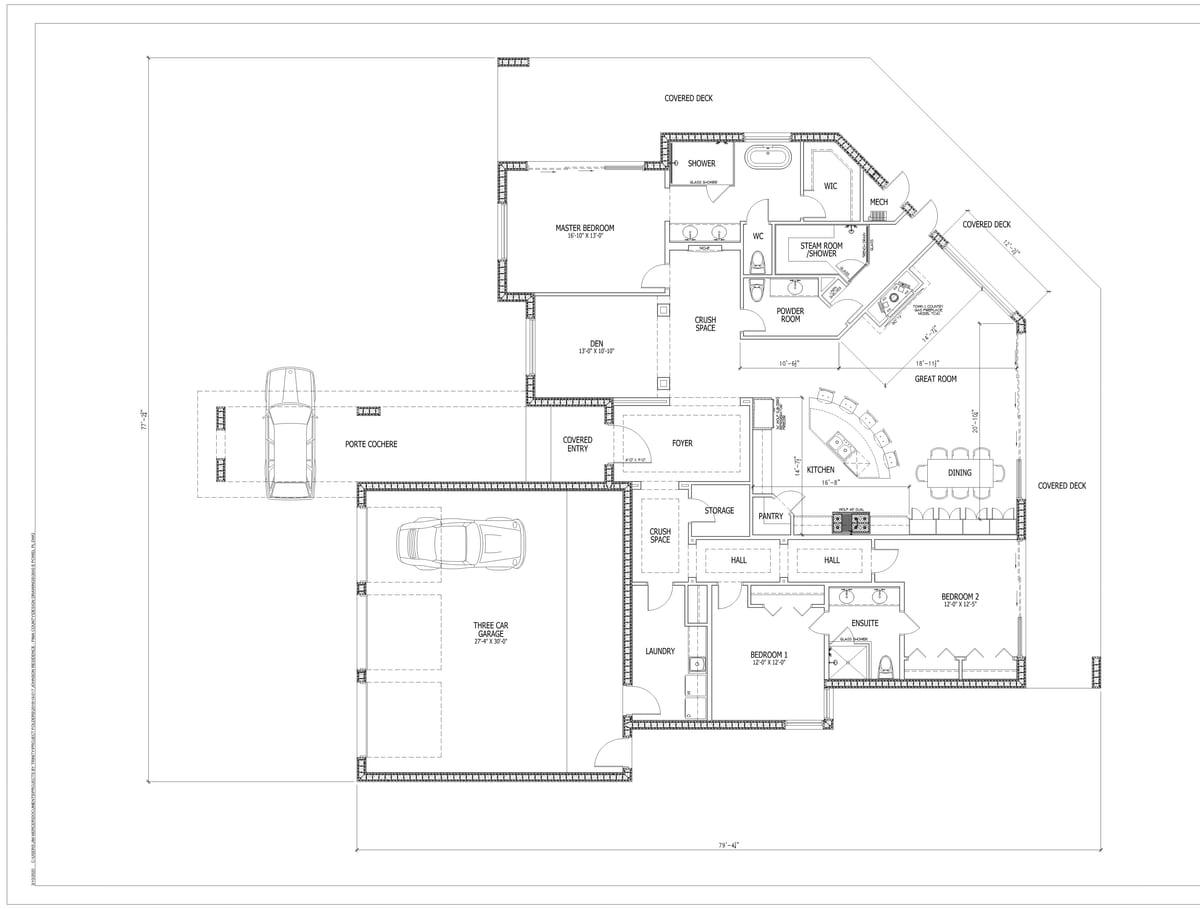

A-01 Proposed Floor Plan
Construction floor plan and proposed foundation plan with keyed notes.

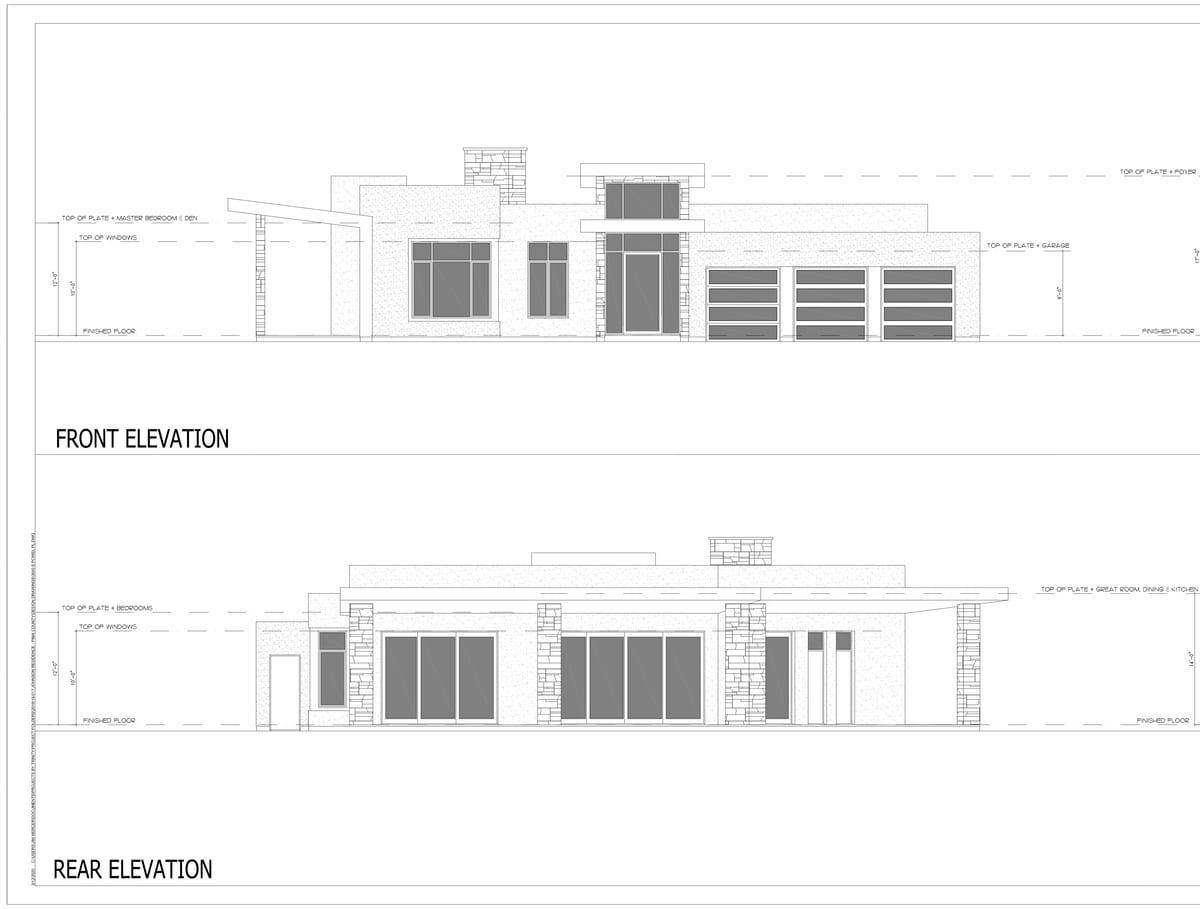

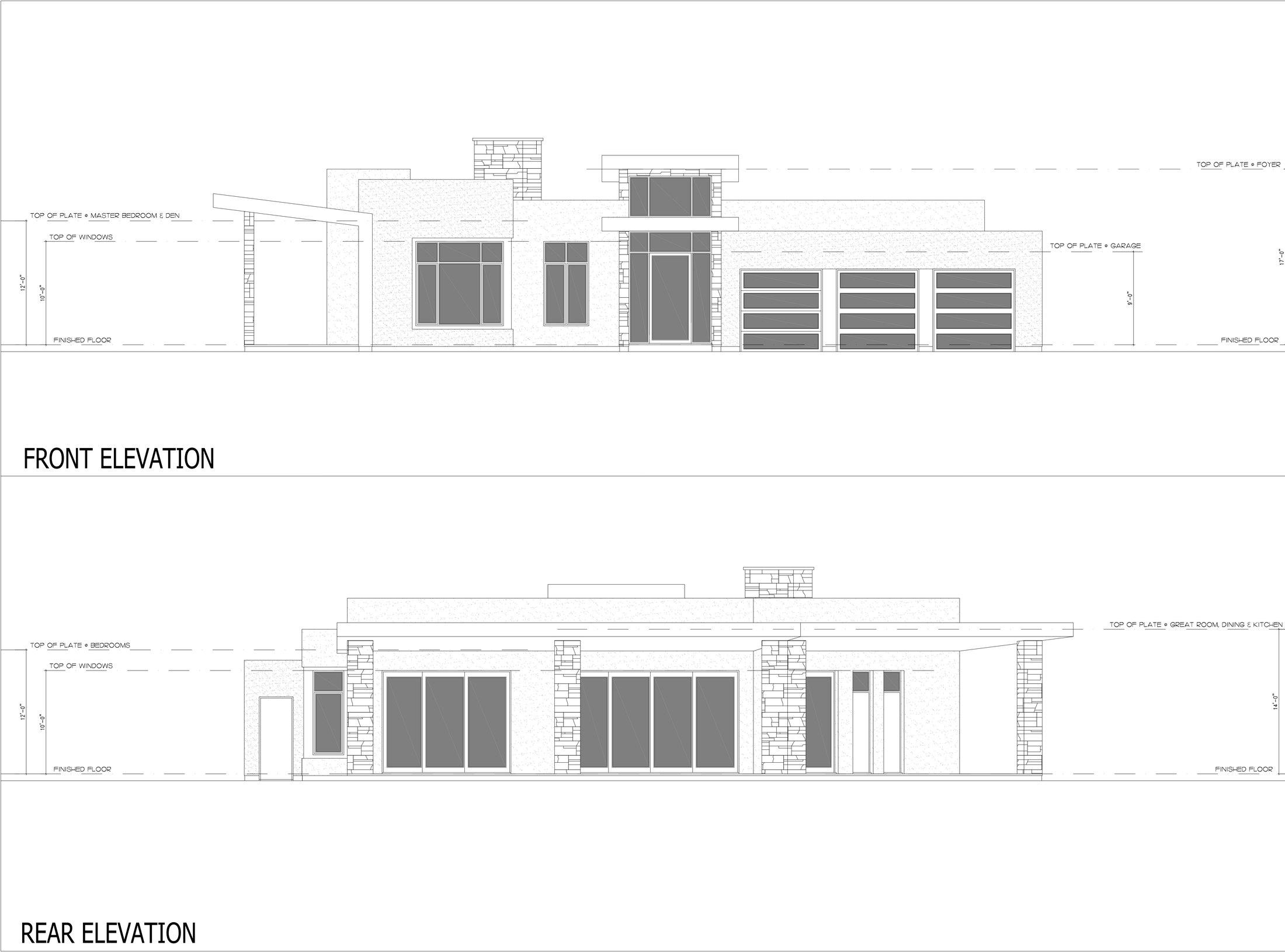

A-02 Front & Rear Elevations
Exterior elevation drawings: front and rear of the residence.

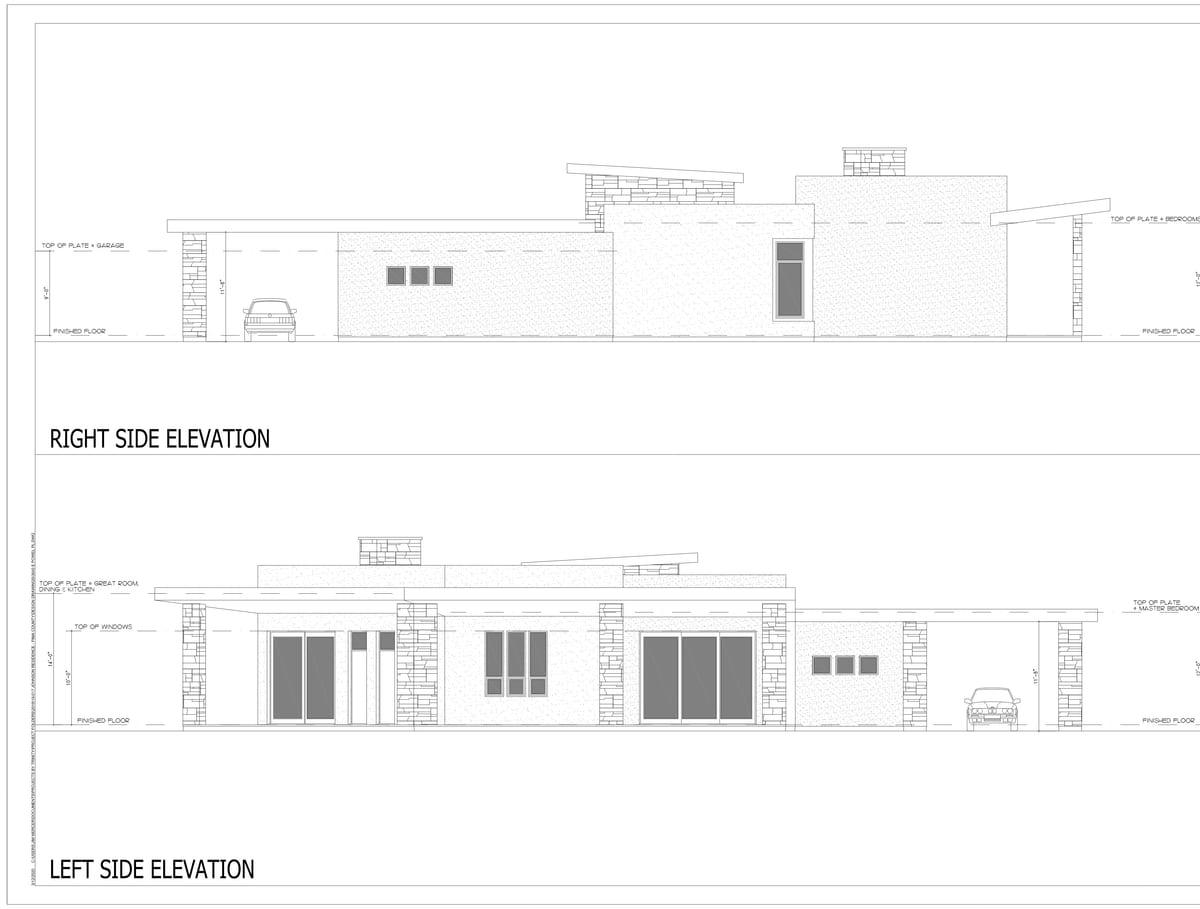

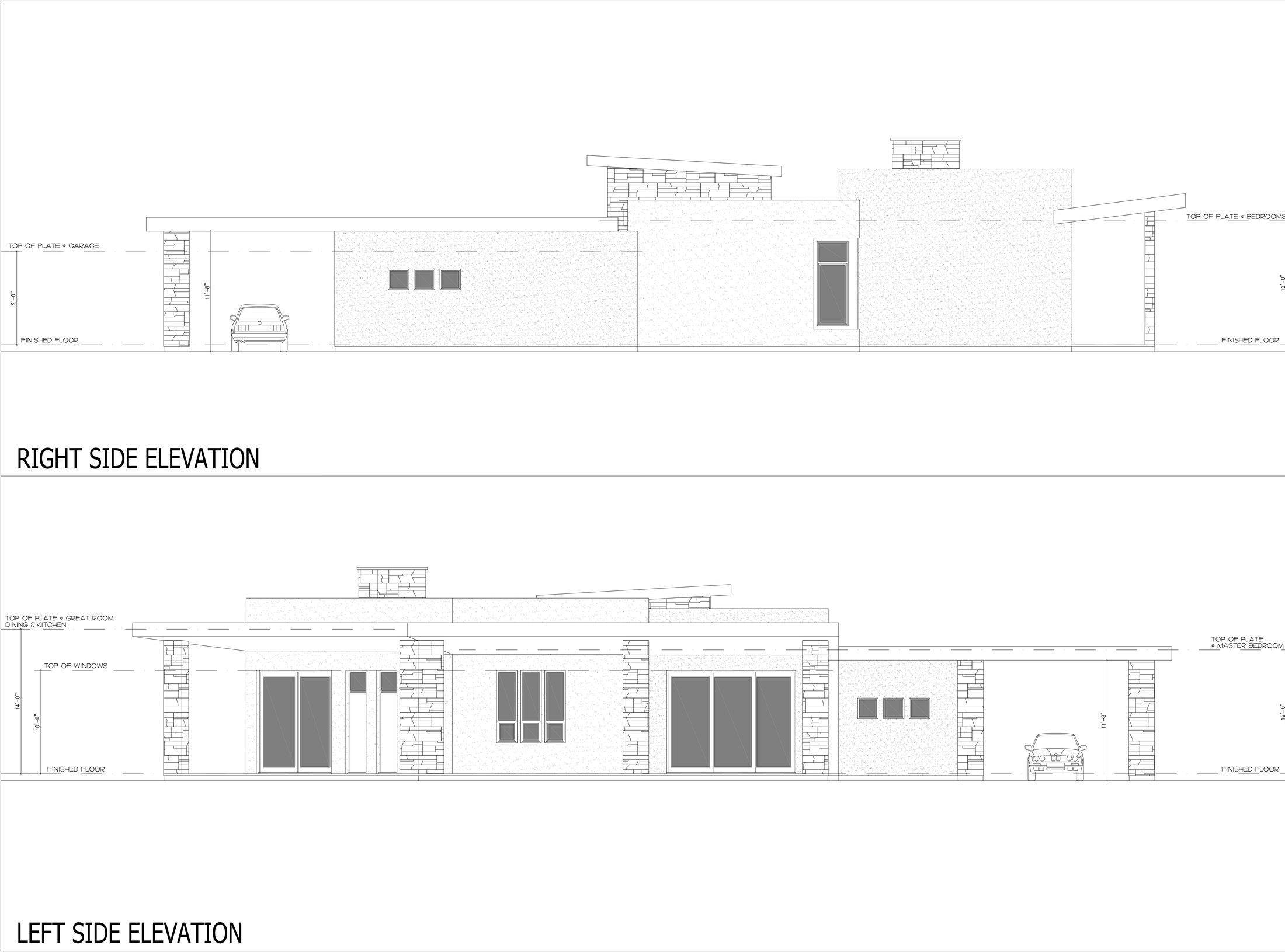

A-03 Side Elevations
Exterior elevation drawings: left and right side.

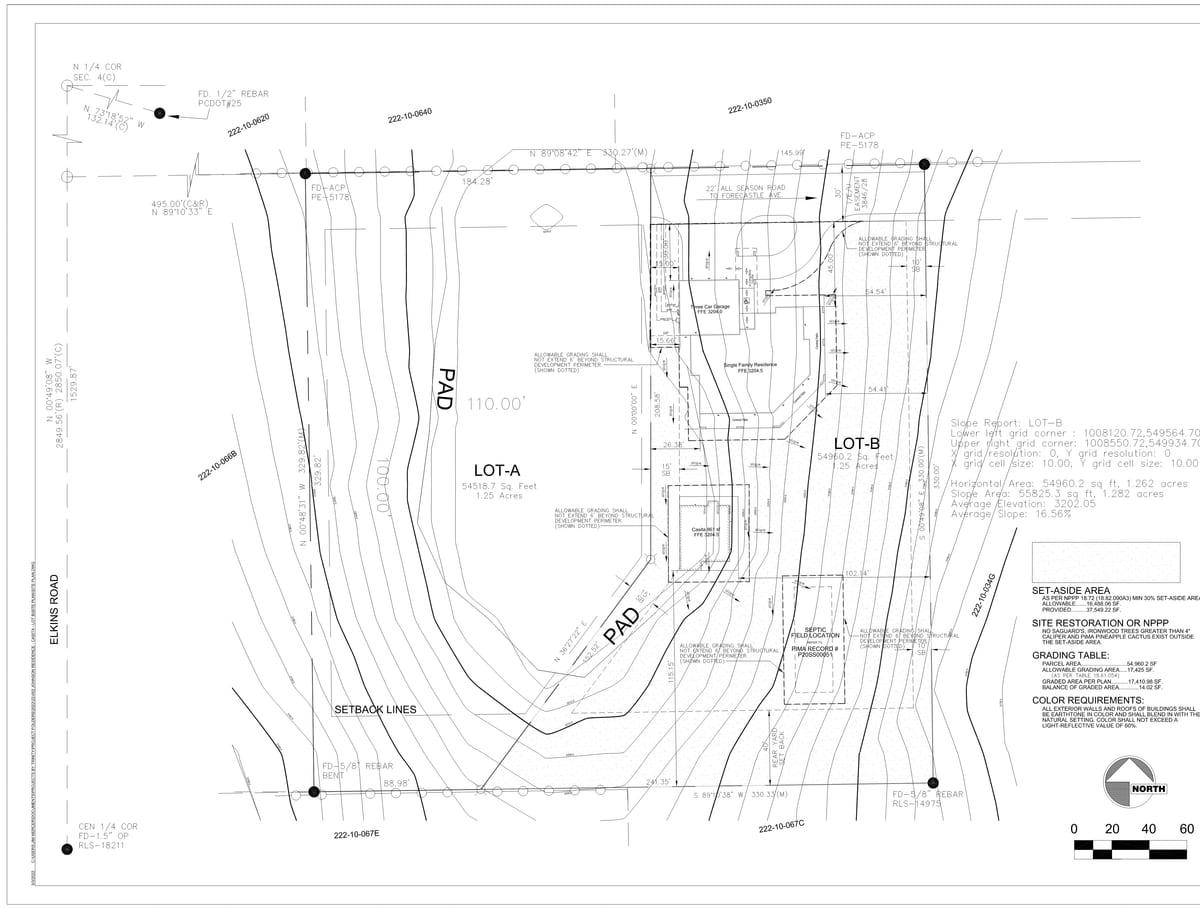

Proposed Site Plan
Site plan with building pads, setbacks, grading table, and slope report.
The ACI ICF Years
ACI ICF was the company before SENERGY360, both founded and run by Brian Johnson. The insulated concrete form expertise built there carries straight into every SENERGY360 home, including the ICF walls of The Sanctuary. About Brian Johnson
