Structured Water · Design, Fabrication + Installation

Custom Whole Home Structured Water System

SENERGY360 designs, fabricates, and installs custom whole-home water systems that treat the incoming supply for the entire house rather than a single tap. Water is the one system in a house that touches everything: what you drink, what you cook with, what you bathe in, and what your skin absorbs all day.

Every system is built for the property it serves. Source water and the home’s flow requirements set the treatment chain: sediment and carbon stages, ultraviolet where the source calls for it, and Natural Action Technologies structured-water units that carry the supply through a vortex flow path. The assemblies are built in the shop on stainless frames with sanitary fittings and a pressure gauge at each stage, then set and plumbed on site.

The result is a system a homeowner can actually live with and maintain: filters labeled by stage, gauges that show when an element is loading up, isolation valves at the connections, and a finished stainless enclosure over the whole assembly.

The Work

Built, Installed, Enclosed

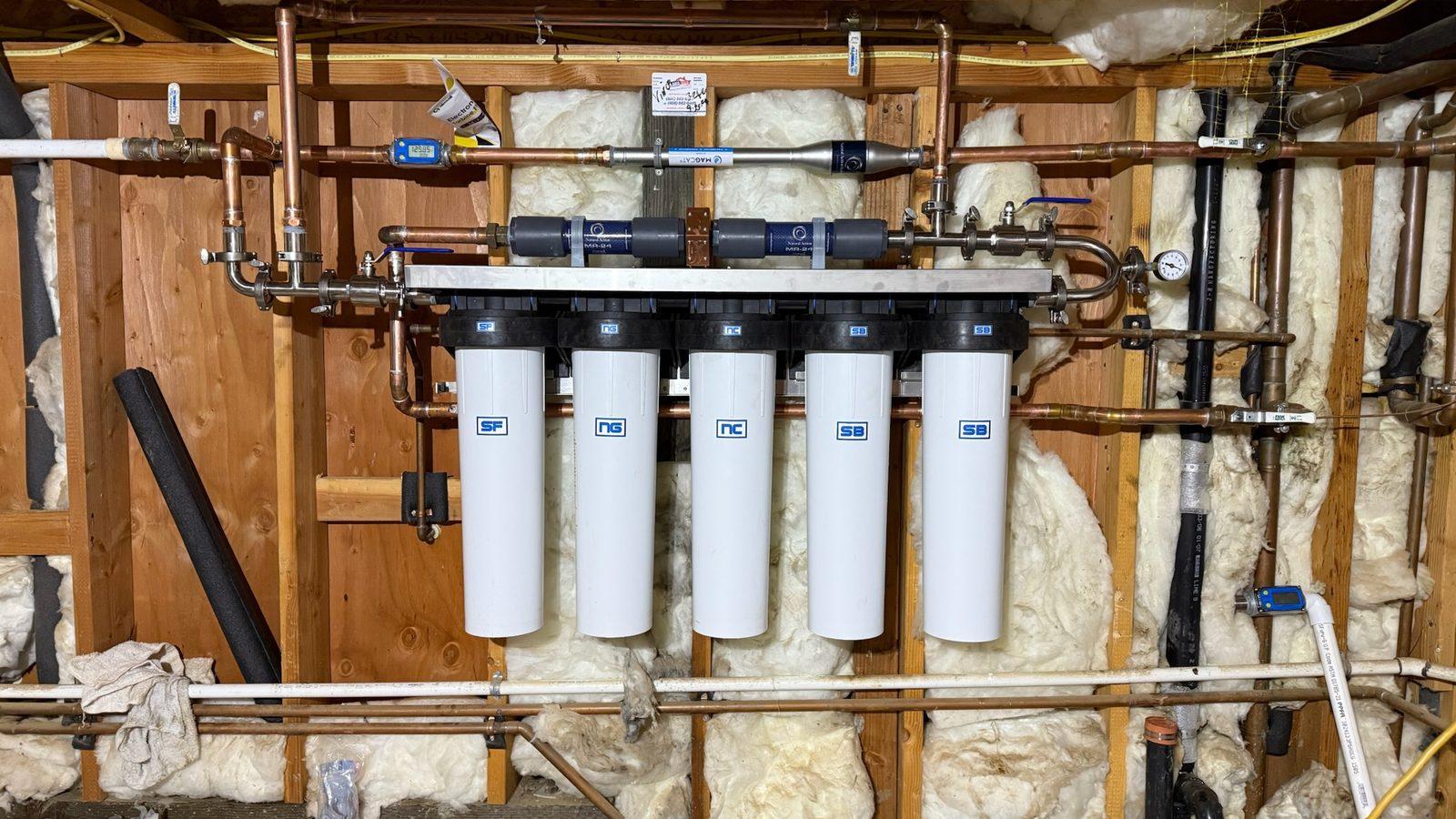

Whole-home water treatment wall roughed in on open framing: five cartridge housings under a manifold of inline structured-water units and copper piping — A whole-home treatment wall roughed in while the framing is still open. Five cartridge housings hang under a manifold carrying the inline structured-water units, with copper supply and return, isolation valves at each leg, and a pressure gauge on the outlet. Building it at this stage means every connection stays reachable for service once the wall is closed in.

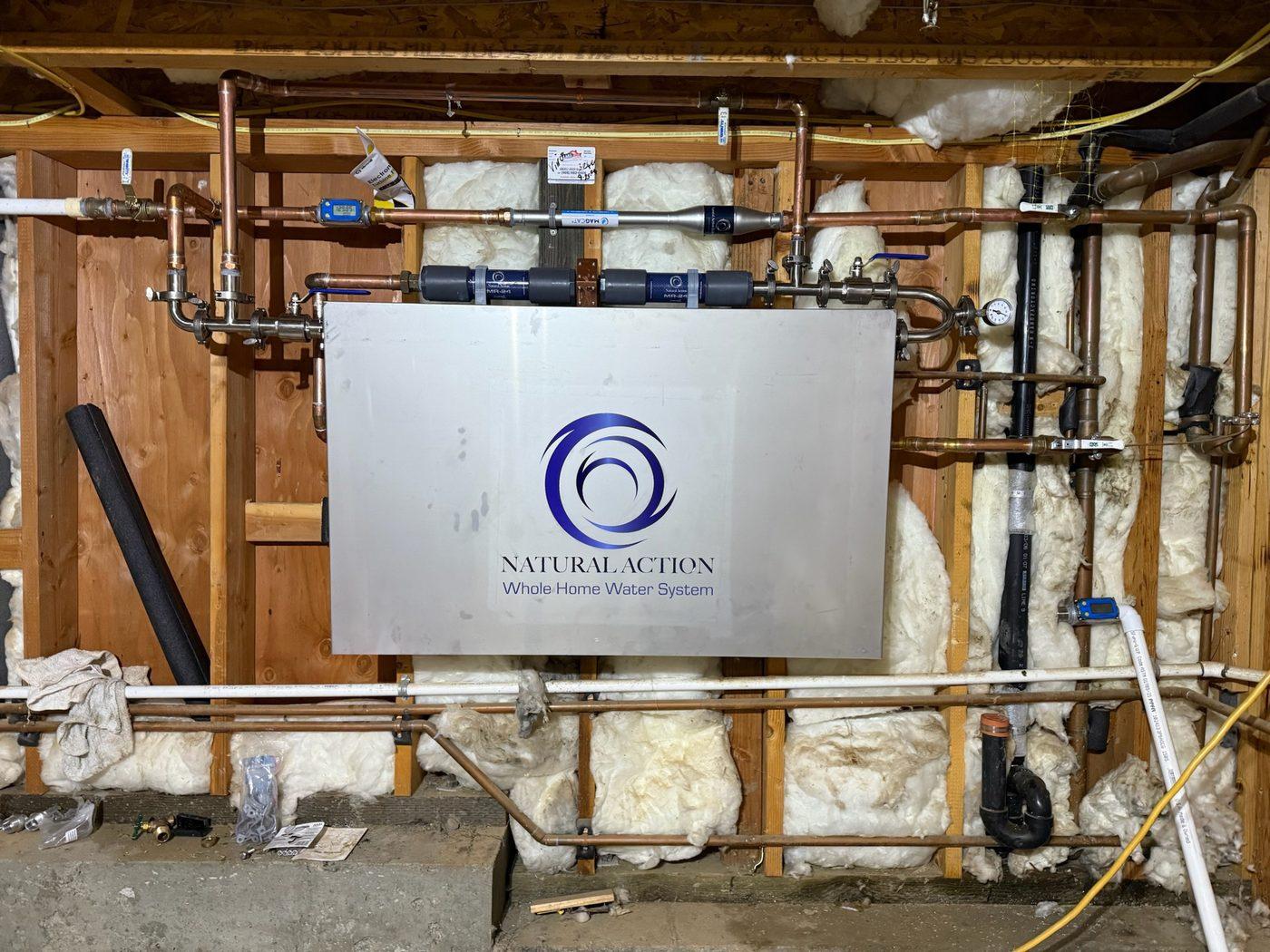

Stainless Natural Action Whole Home Water System cover installed over the cartridge bank on a framed utility wall — The same wall with the stainless cover set over the cartridge bank. The enclosure lifts off for filter changes.

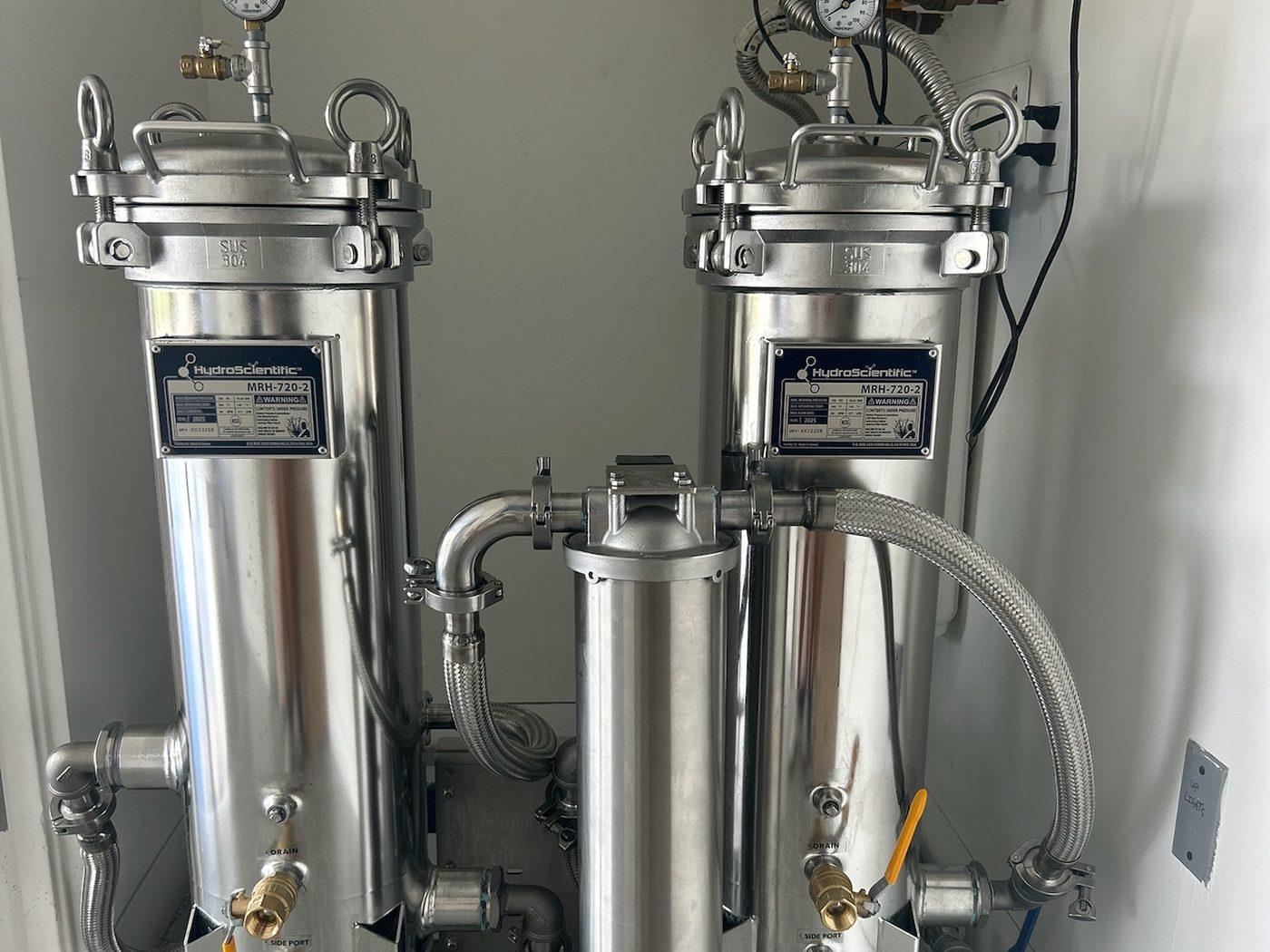

Two stainless filter housings with pressure gauges on a rolling stainless frame in a finished mechanical room — A two-vessel assembly on a rolling stainless frame, gauged at each housing and set in a finished mechanical room.

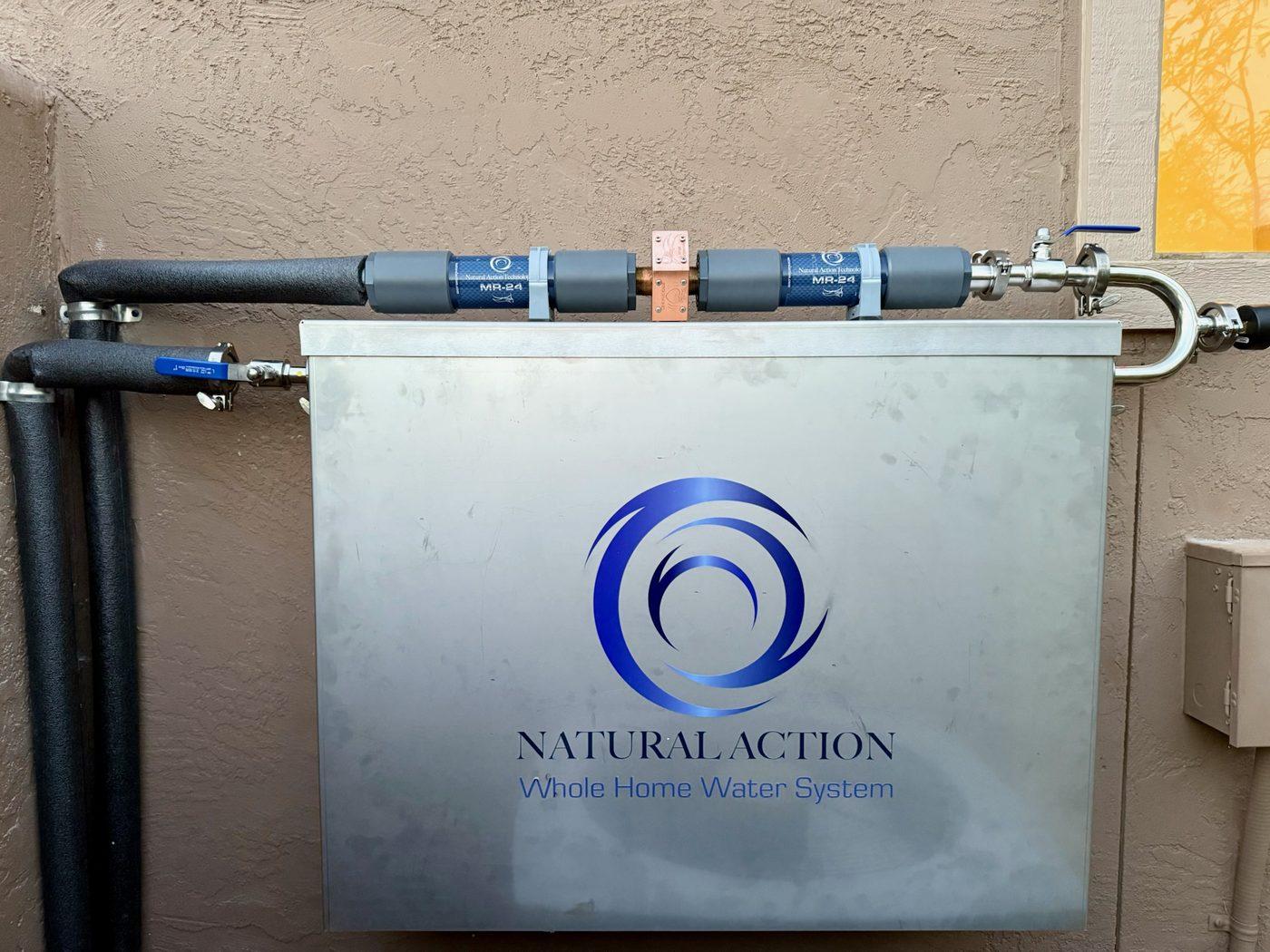

Weather enclosure on an exterior stucco wall with two MR-24 inline structured-water units and insulated supply lines above it — Where the equipment lives outside, the assembly goes in a weather enclosure with the inline units and insulated lines run above it.

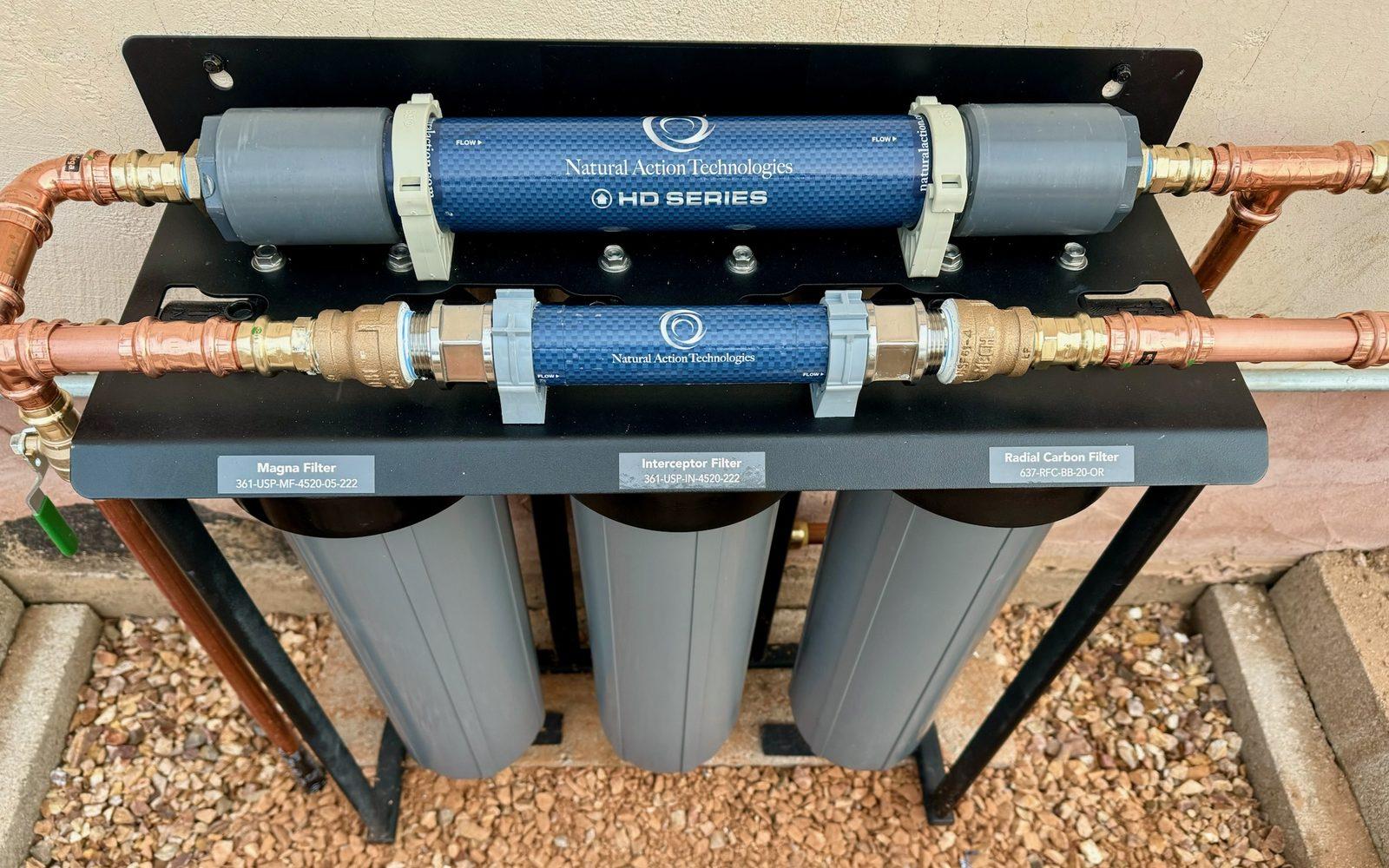

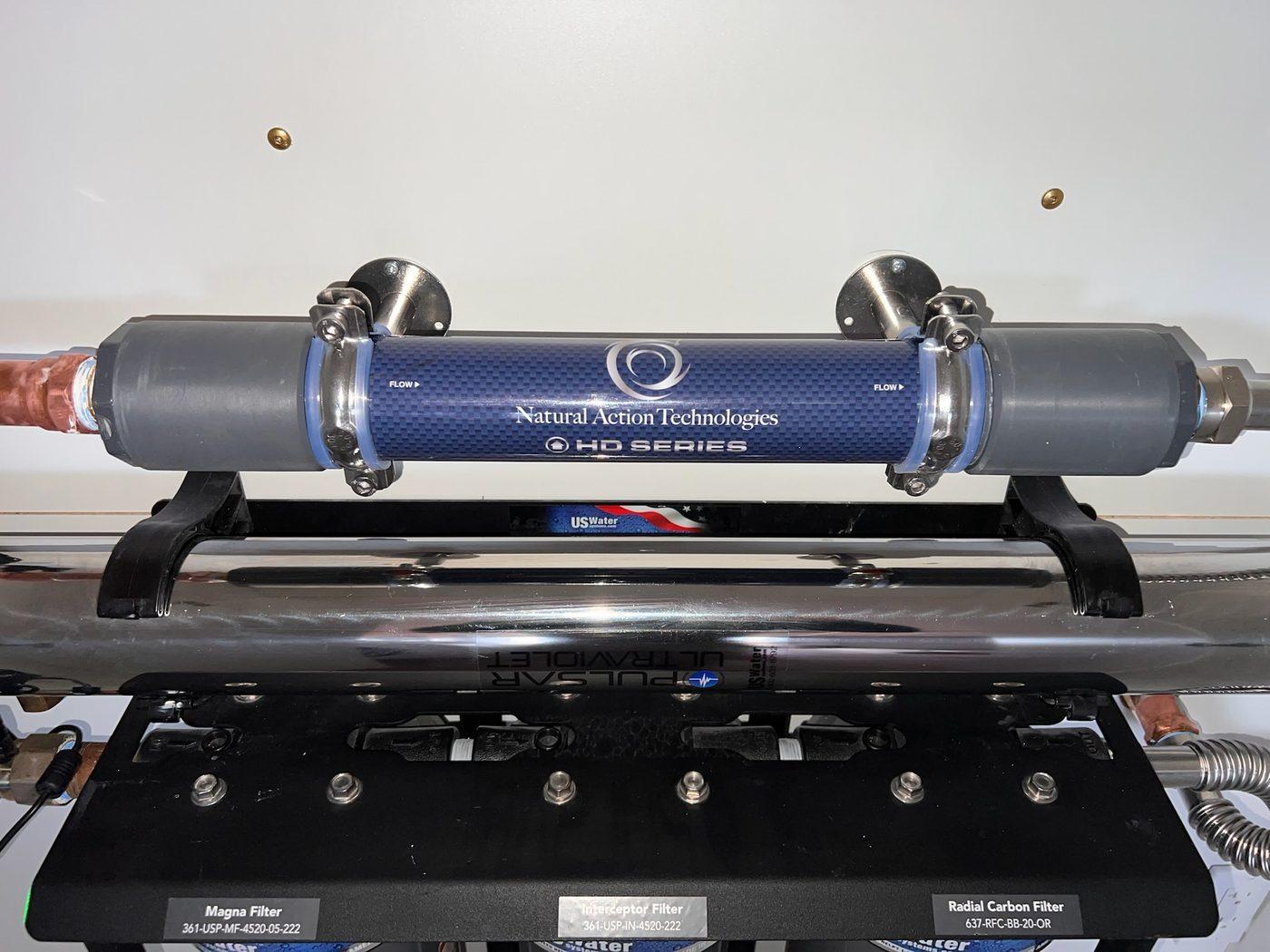

HD Series structured-water unit mounted above an ultraviolet chamber and a manifold labeled Magna Filter, Interceptor Filter, and Radial Carbon Filter — Stages labeled on the manifold — Magna, Interceptor, Radial Carbon — under an ultraviolet chamber and the structured-water unit.

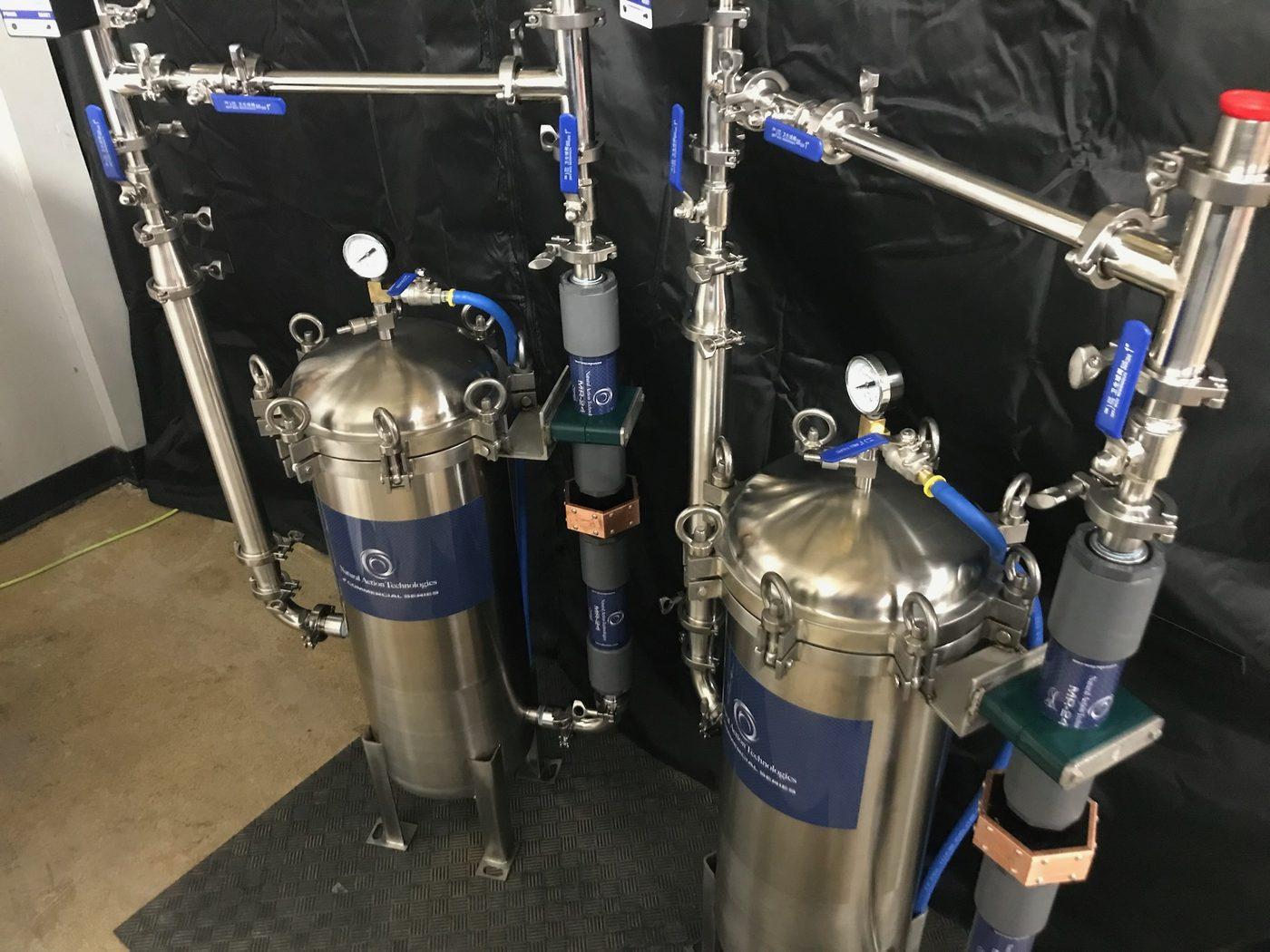

Stainless filtration skids under construction in the shop with tri-clamp piping, gauges, and inline structured-water units — Skids are piped and gauged in the shop, so the site work is a set and a tie-in rather than a build in place.

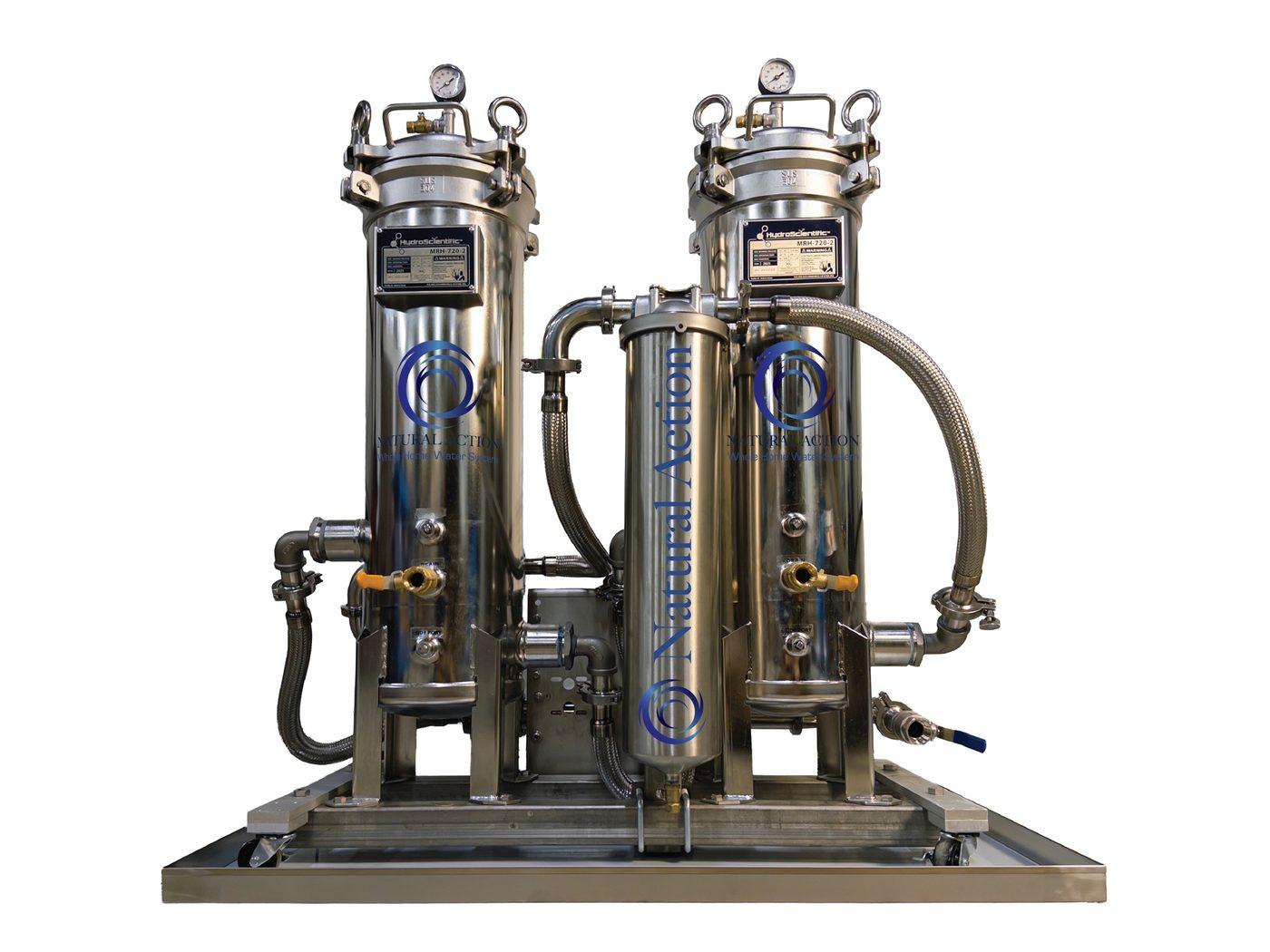

Finished whole-home structured water skid: two stainless filter vessels with gauges, plumbed on a caster-mounted stainless base — A finished whole-home skid: two filter vessels, gauges at each, sanitary connections, and casters on a stainless base.

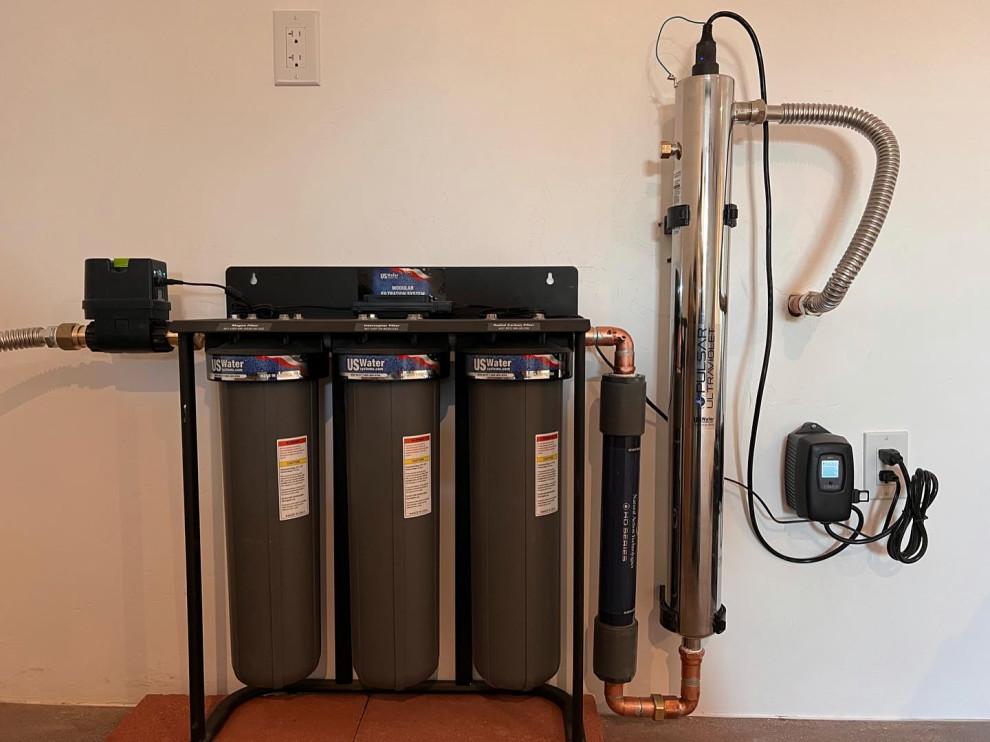

Wall-mounted three-stage filter housing with an ultraviolet sterilizer, plumbed in copper — A wall-mounted three-stage filter with ultraviolet treatment, installed in Catalina, Arizona.

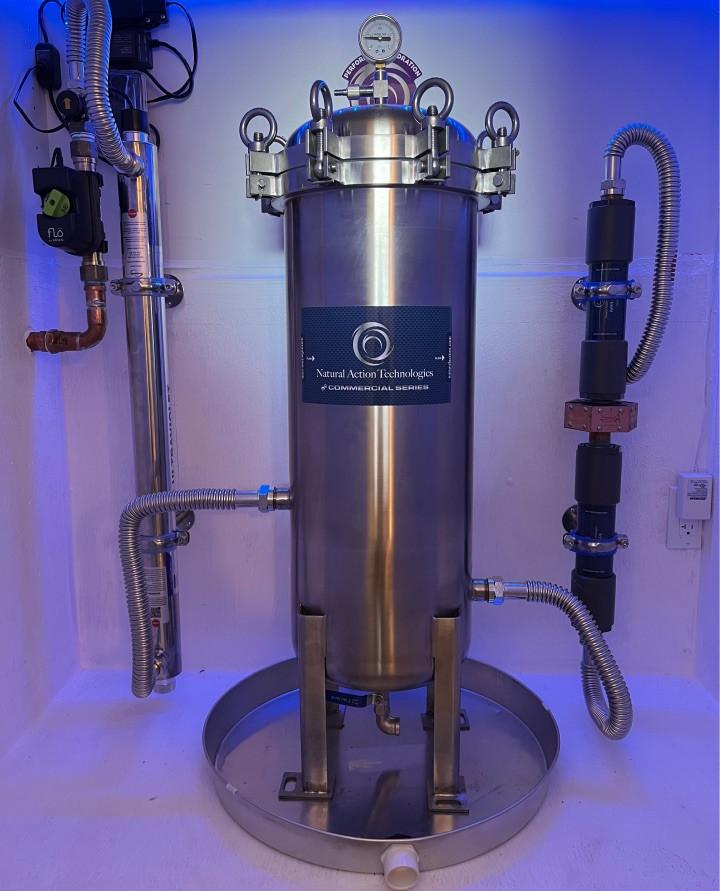

Stainless whole-home filter vessel with gauges, under blue accent lighting — A stainless whole-home filter vessel, set in its own lit cabinet.

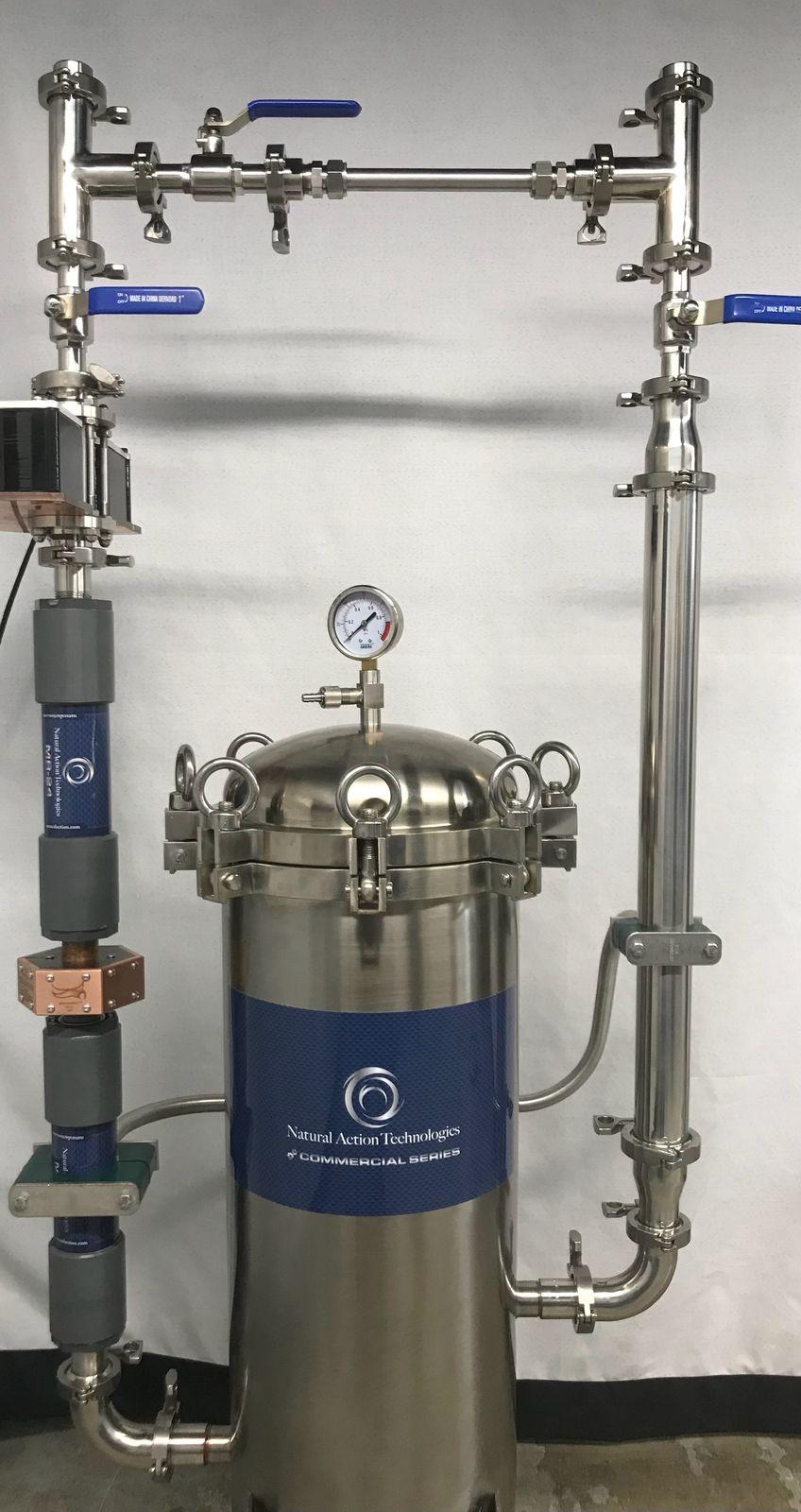

Stainless filter vessel with a pressure gauge, inline structured water units, and stainless piping on a shop frame — A vessel assembly piped and gauged in the shop before it ships.

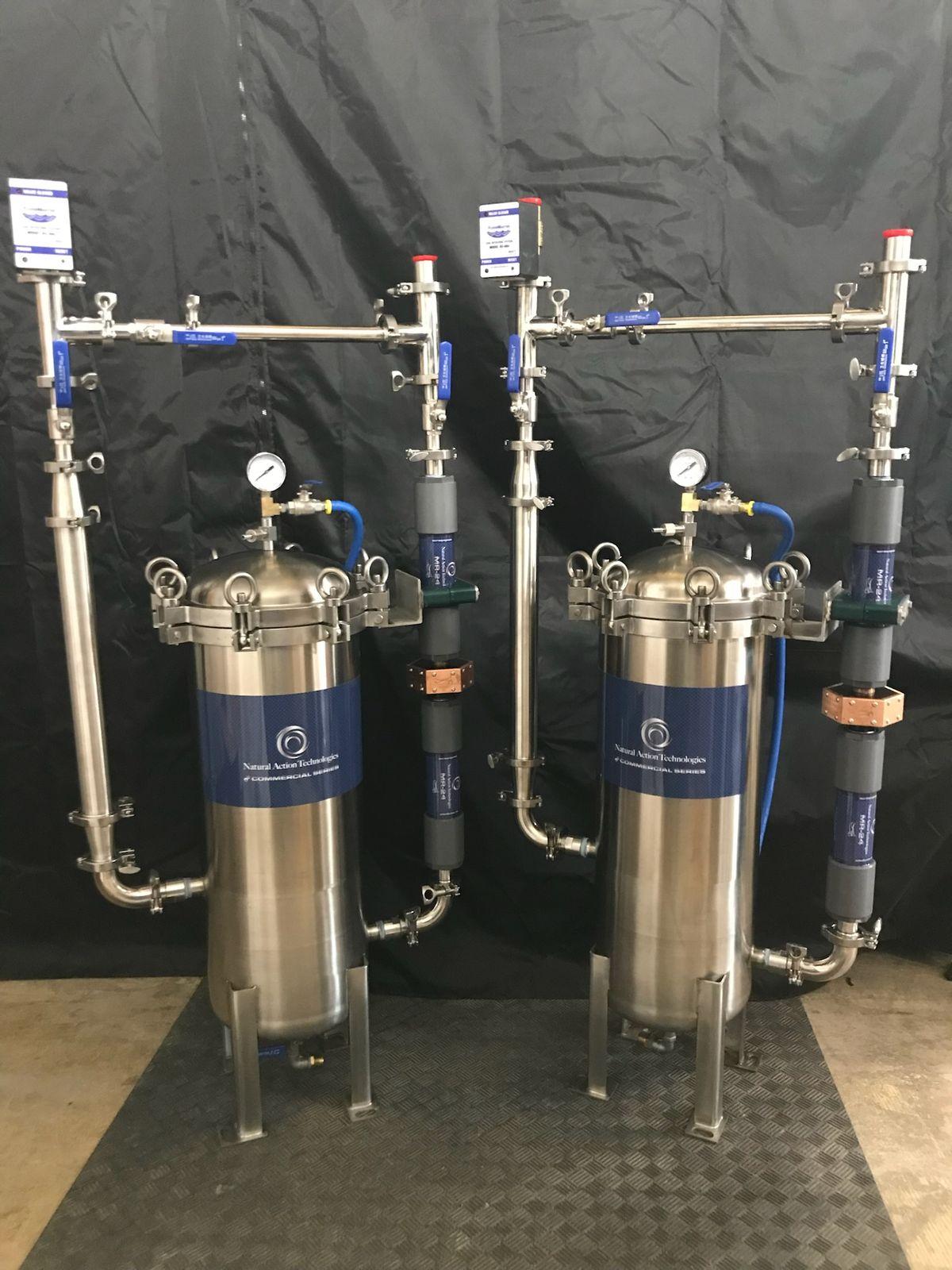

Two stainless whole-home water assemblies standing side by side in the shop — Two whole-home assemblies finished in the shop, ready to set on site.

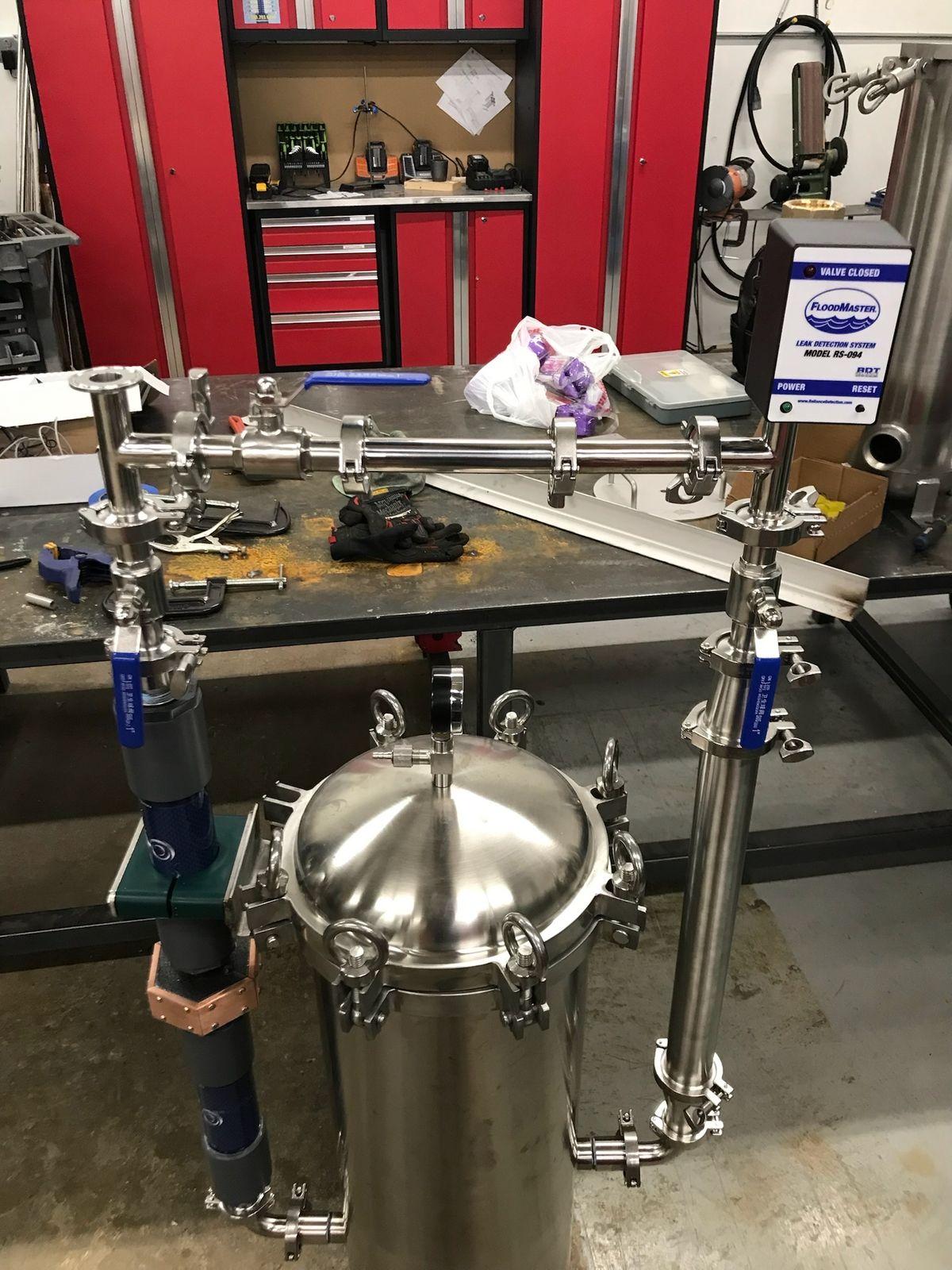

Stainless filter vessel and piping on a workbench in the fabrication shop — A vessel and its piping coming together on the bench.

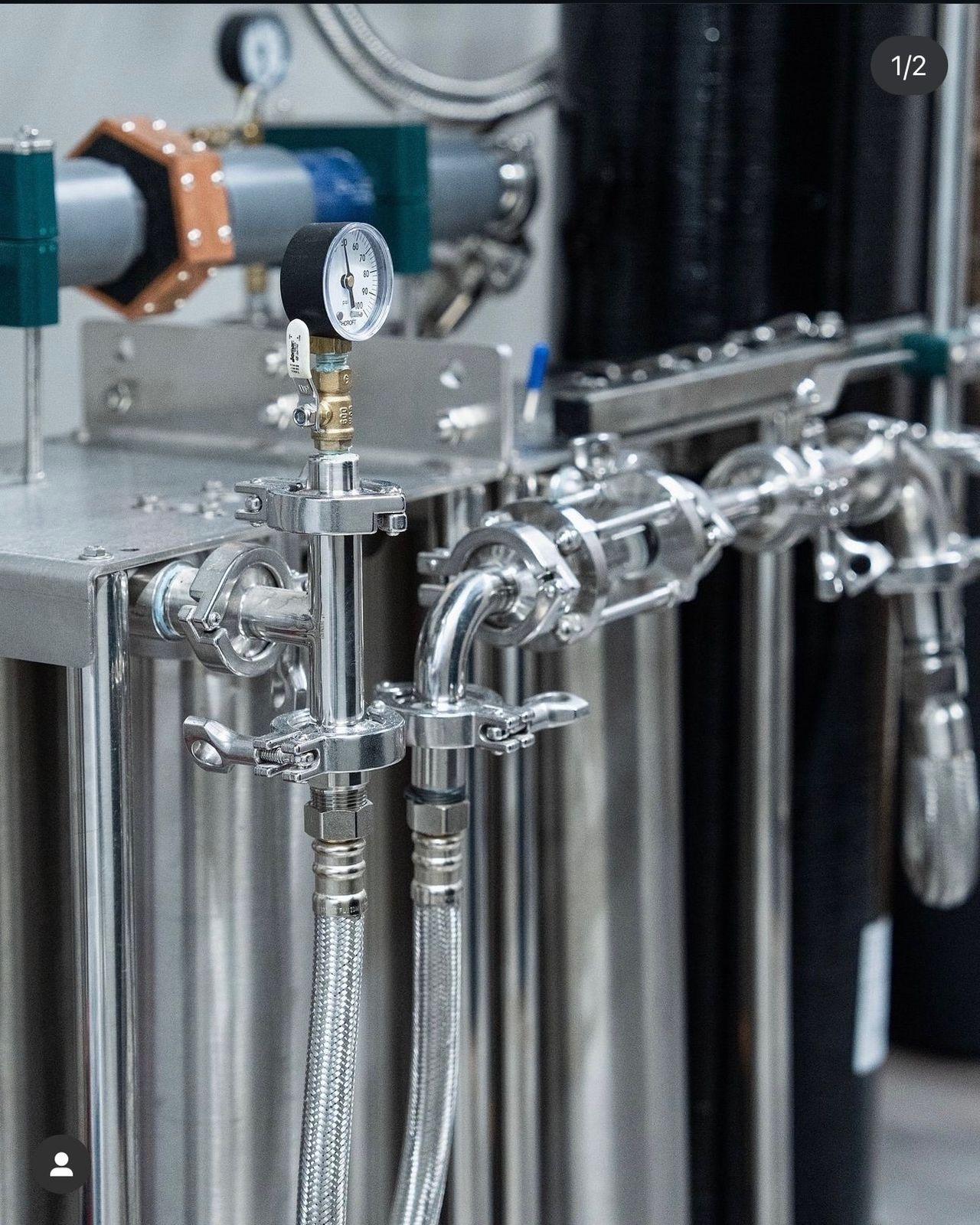

Close-up of tri-clamp sanitary fittings, a pressure gauge, and stainless piping — Tri-clamp sanitary fittings and a gauge at the stage, so each element can be serviced without cutting pipe.

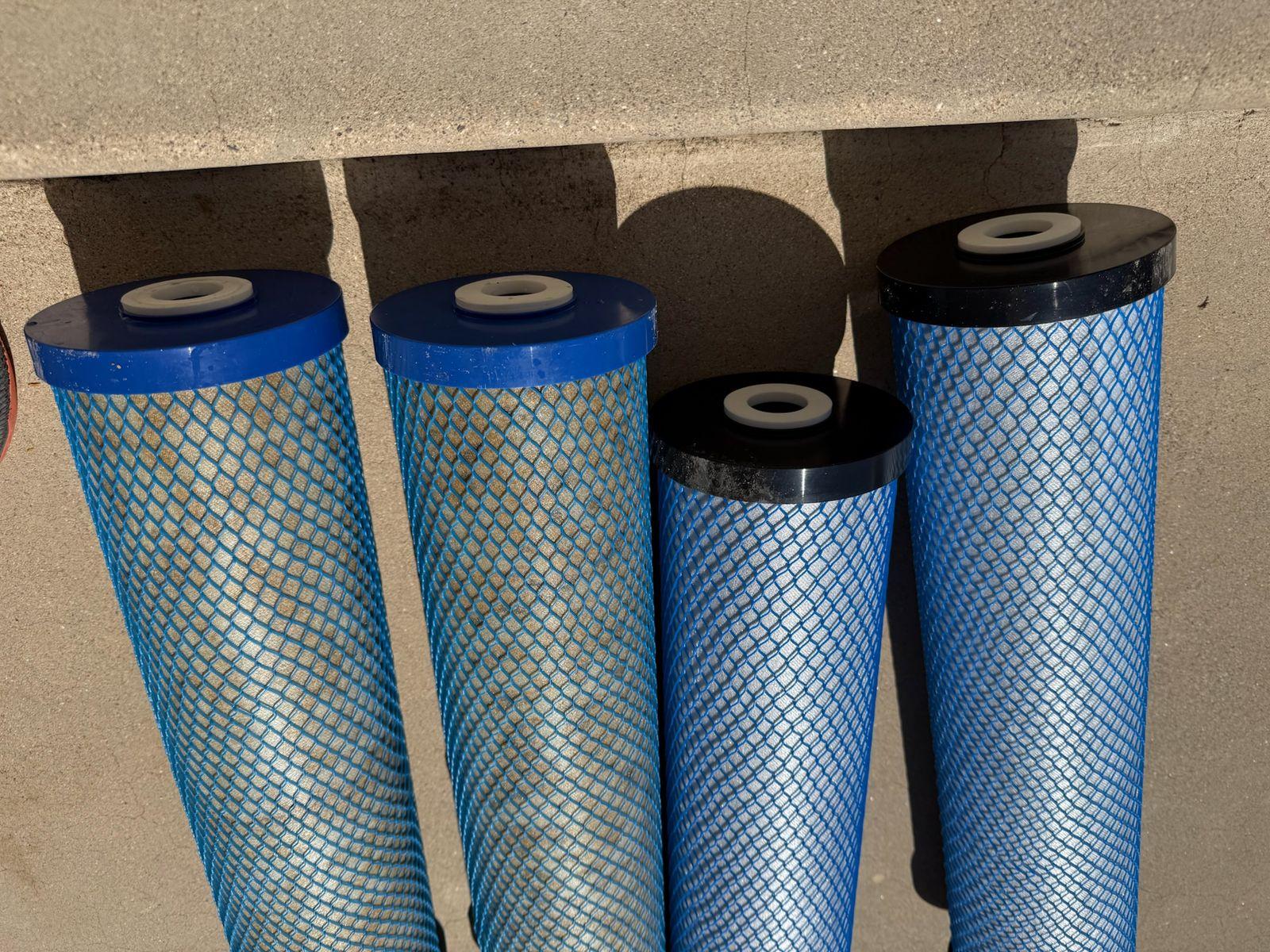

Four carbon block filter cartridges in blue mesh wraps — Carbon block cartridges for the filtration stages.

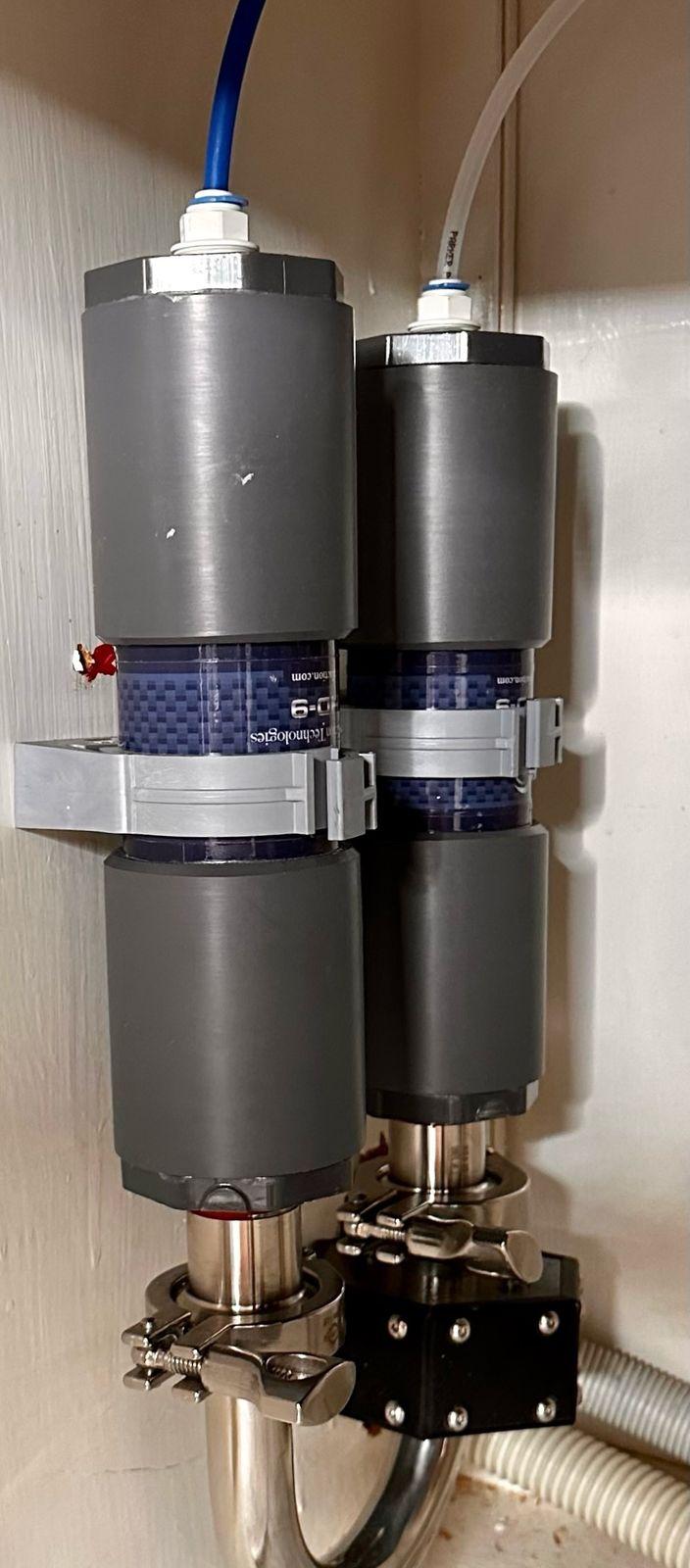

Two gray inline structured water units mounted vertically on a wall — A pair of inline structured-water units mounted on the supply.

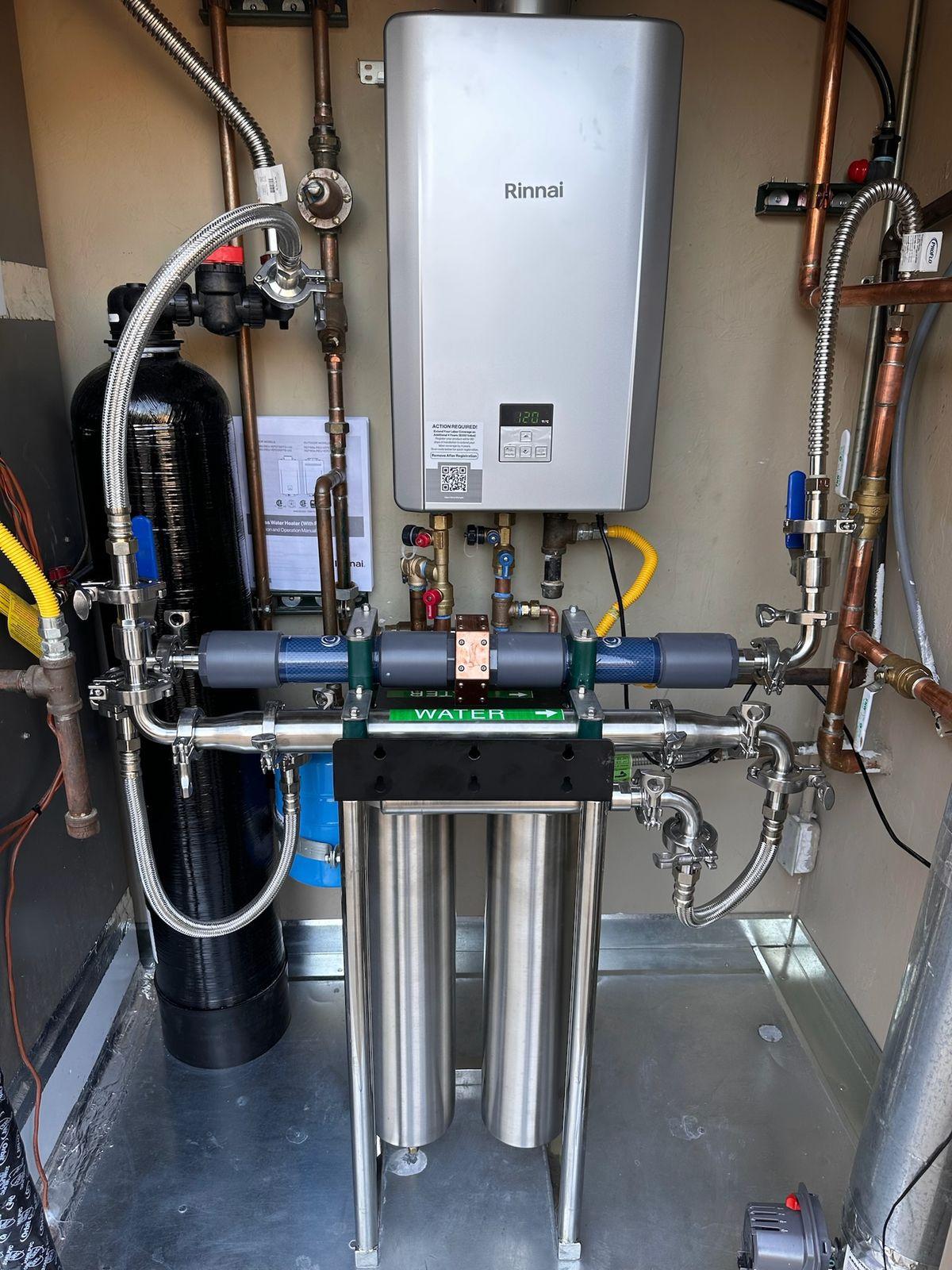

Whole-home structured water system installed beside a tankless water heater in a utility closet — A system set beside the tankless water heater, with the inline units on the manifold above the filter housings.

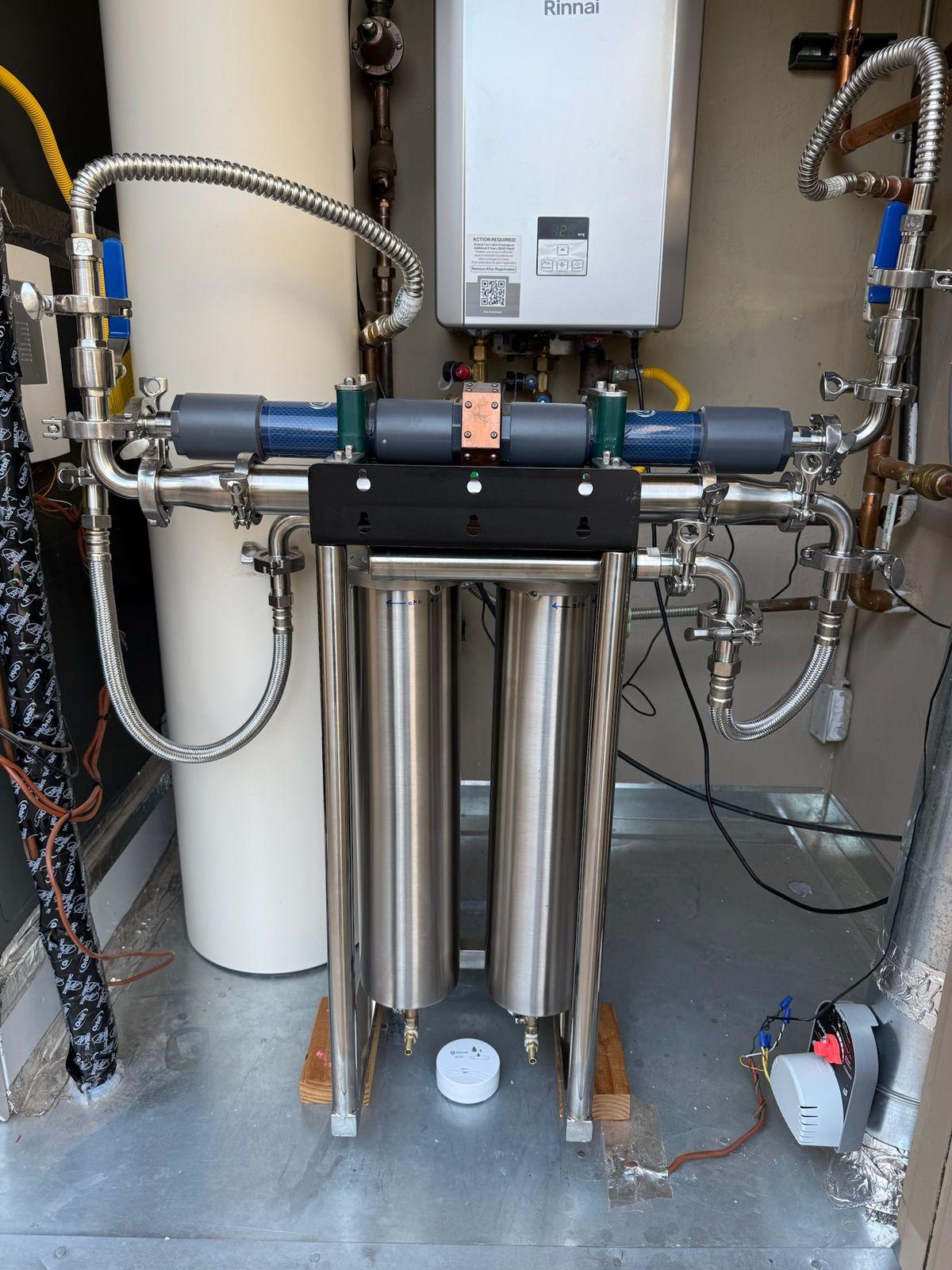

Stainless two-housing water system with inline units plumbed into a utility closet next to a tankless heater — Another closet install, tied into the supply and the water heater.

Two-vessel stainless water system on casters in a garage corner — A two-vessel system on casters, set in the corner of a garage.

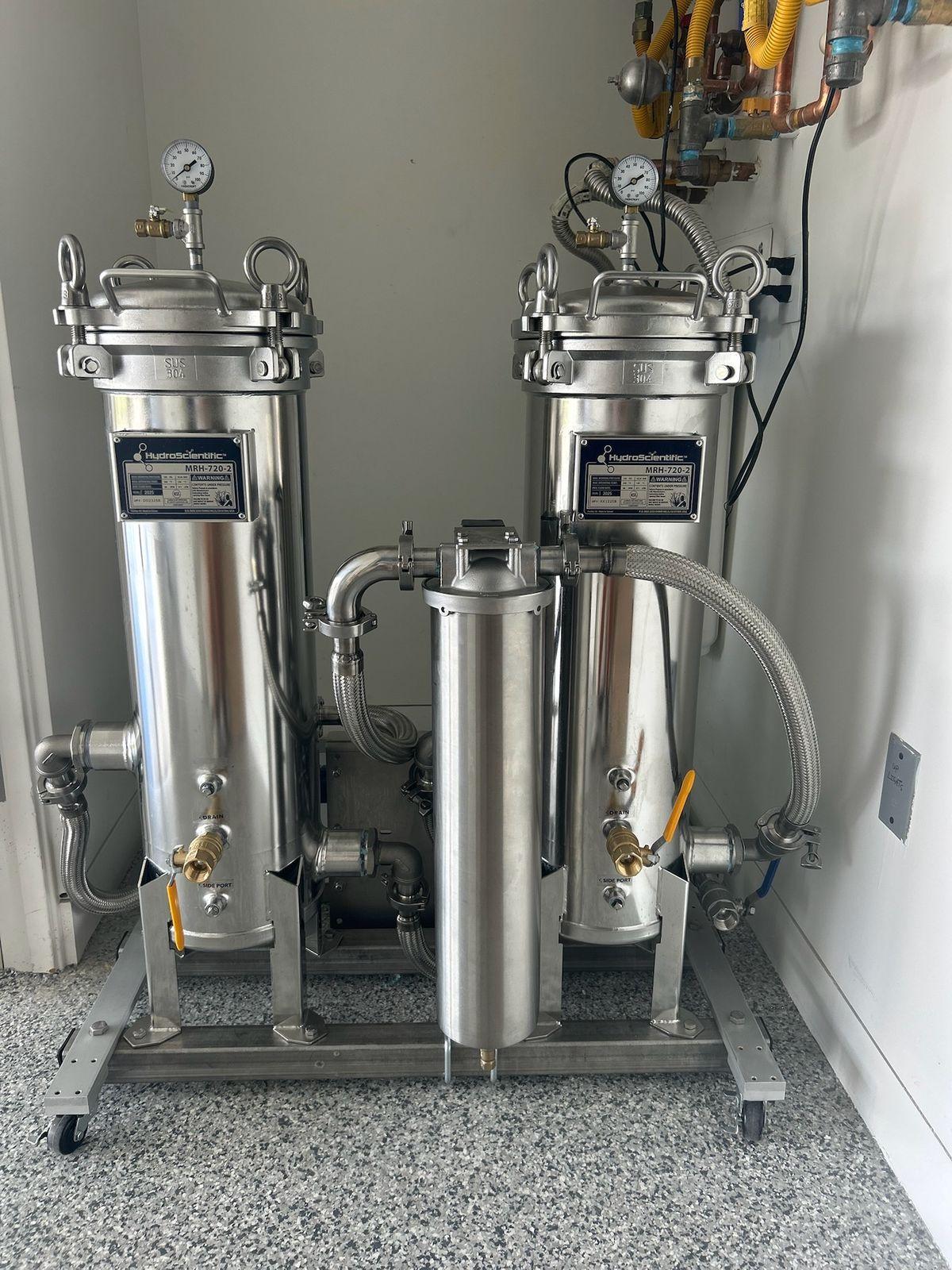

Stainless two-vessel water system with a center housing on a rolling base against a white wall — A finished skid on a rolling base, so it can be moved out for service.

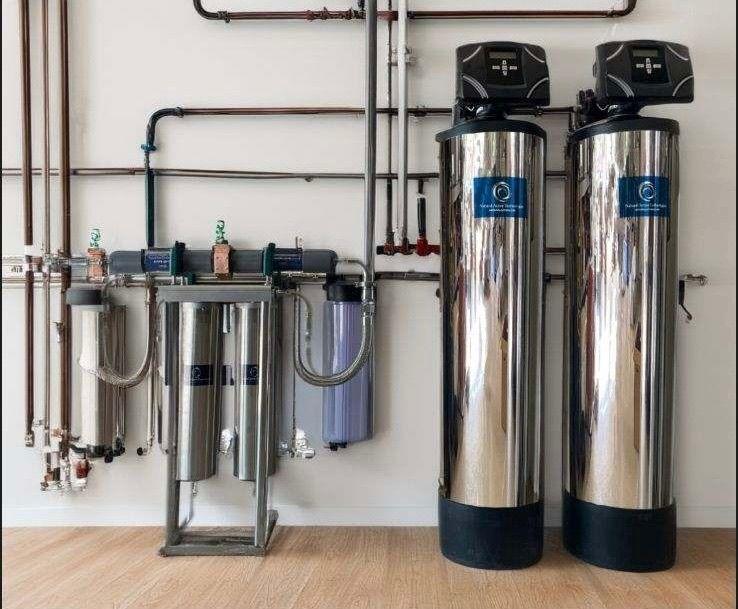

Stainless whole-home water system on a wall beside two tall treatment tanks — A wall-mounted system beside two treatment tanks.

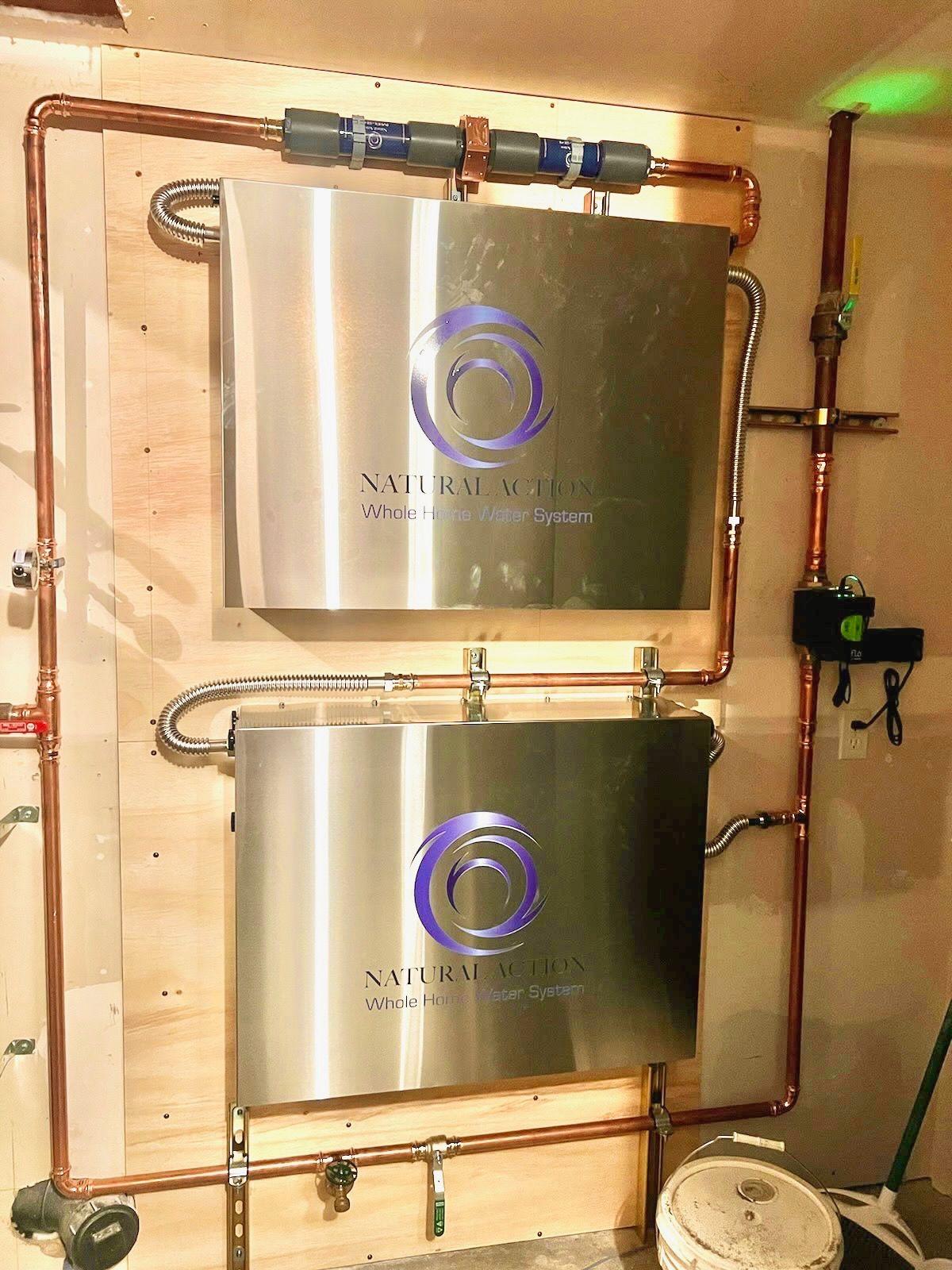

Two stainless Natural Action enclosures mounted one above the other on a plywood wall with copper piping — Two enclosed systems stacked on one wall, plumbed in copper.

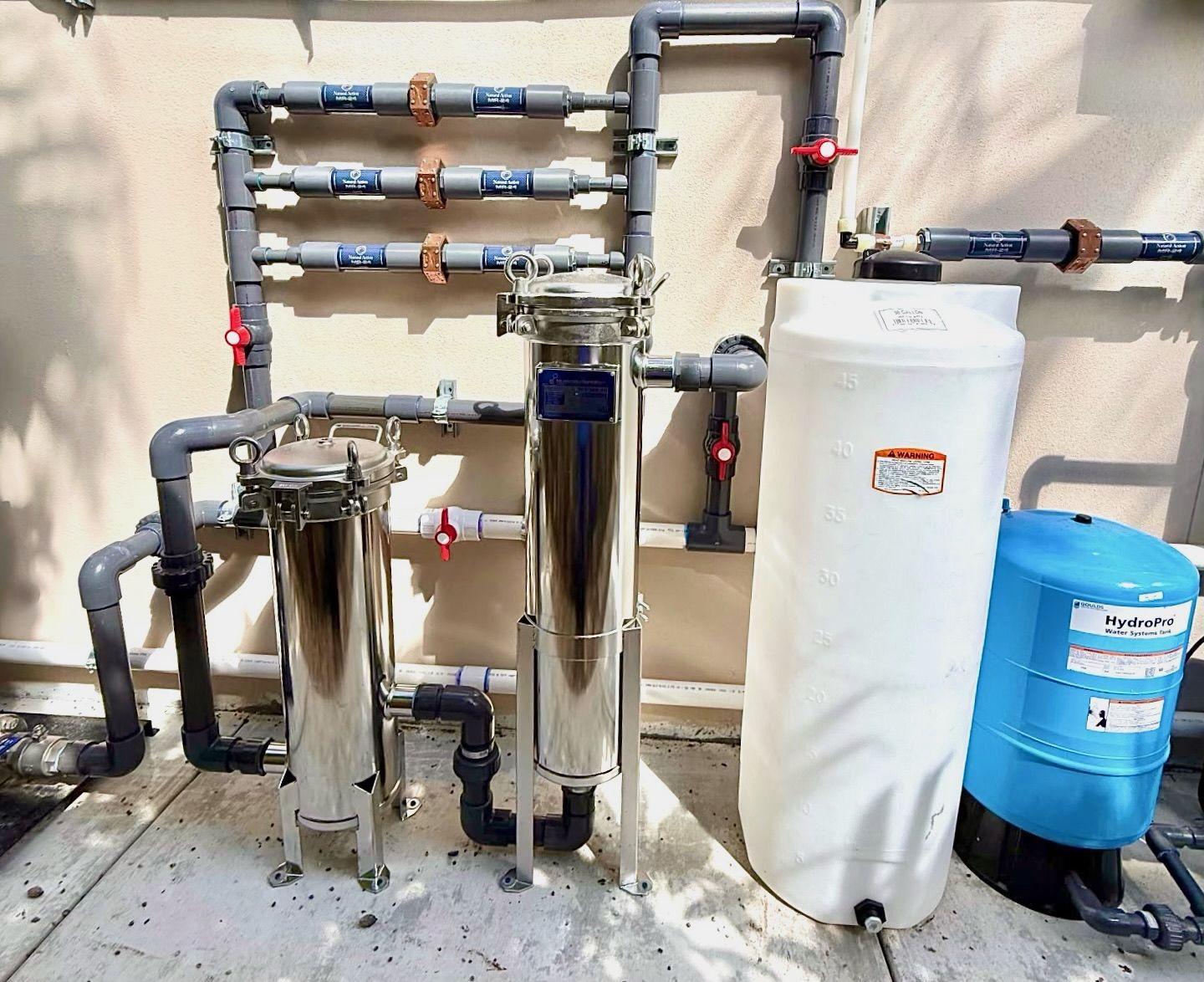

Stainless filter vessels with gray piping and storage tanks installed outdoors — Stainless vessels, piping, and storage tanks on an outdoor equipment pad.

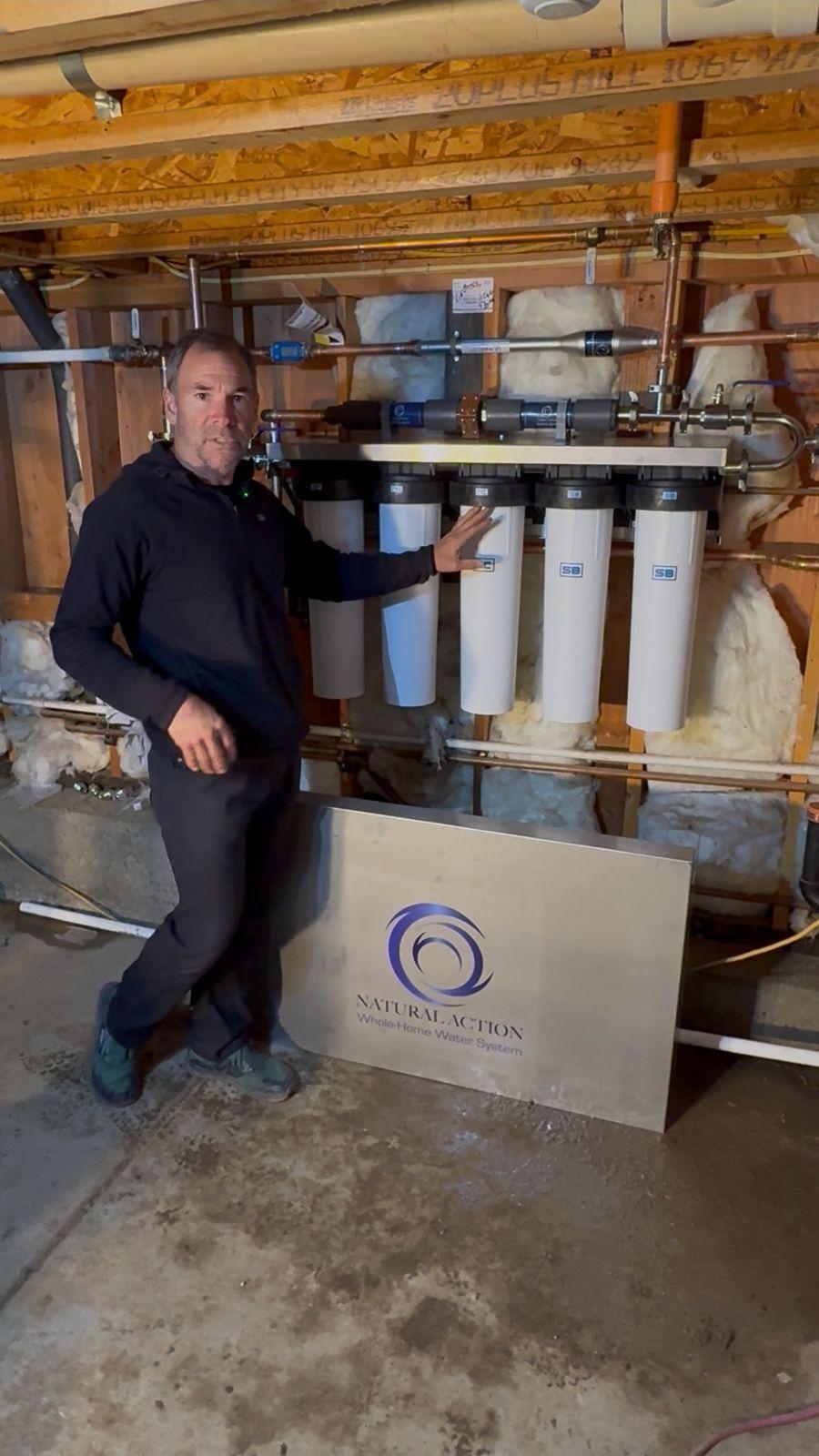

Brian Johnson beside a five-cartridge whole-home water system in a basement, with the stainless enclosure cover leaning below — Brian Johnson with a five-cartridge system in a basement, its stainless cover waiting to go on.

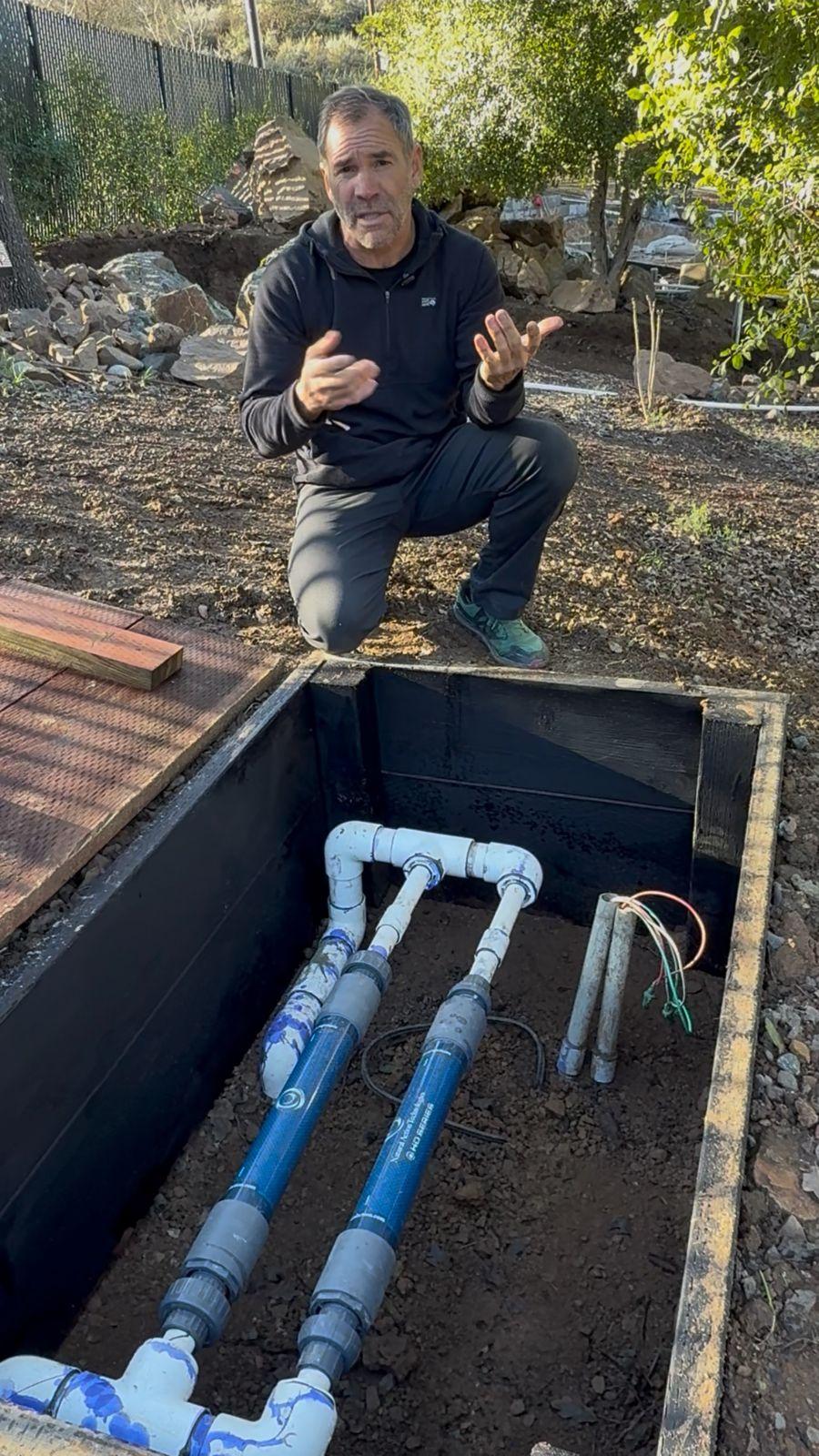

Brian Johnson kneeling beside an open box housing inline structured water units on the buried supply line — Inline units on the supply line, set in a buried box.

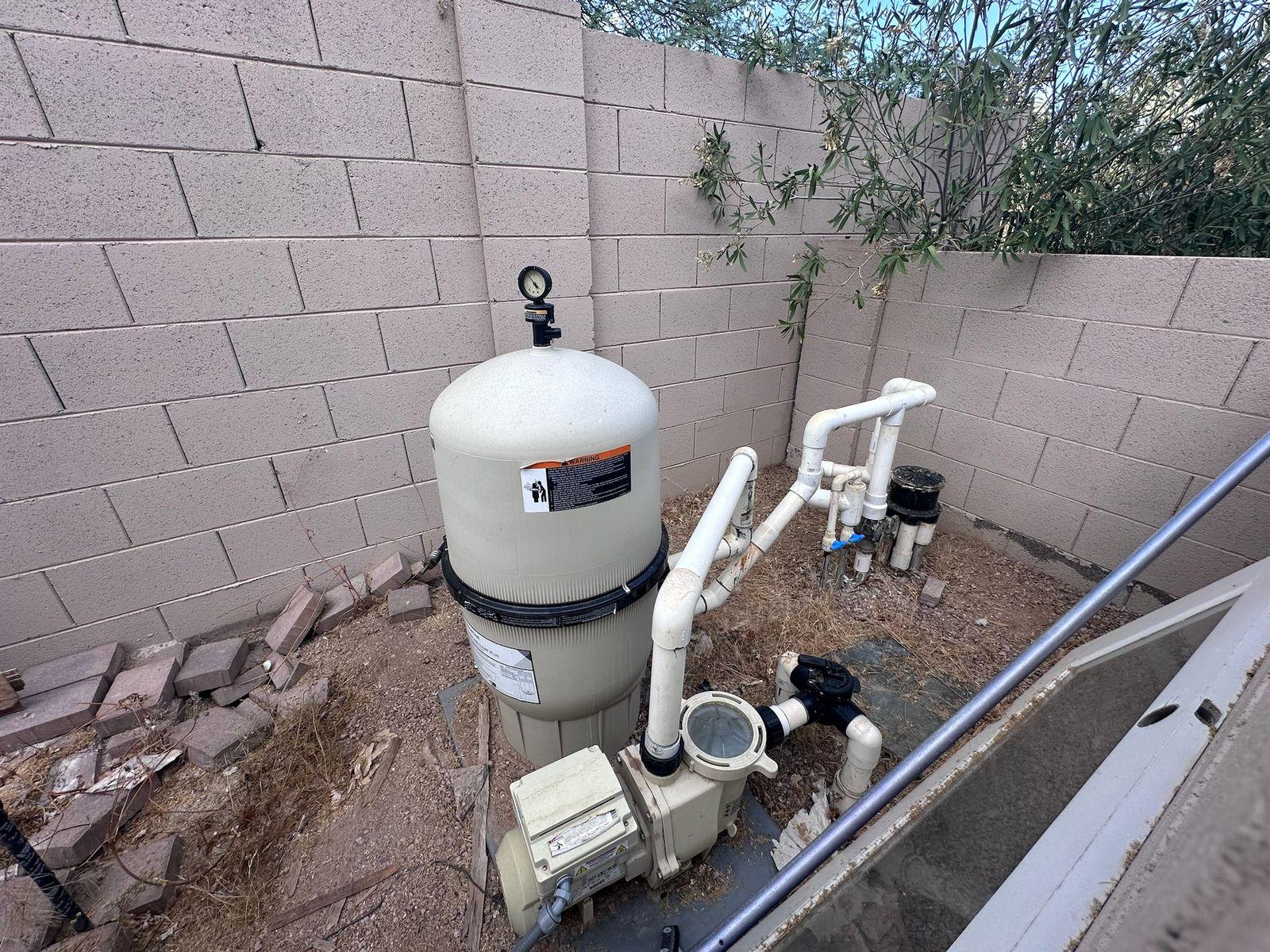

Pool filter and pump on an equipment pad beside a block wall — The pool filter and pump on their equipment pad.

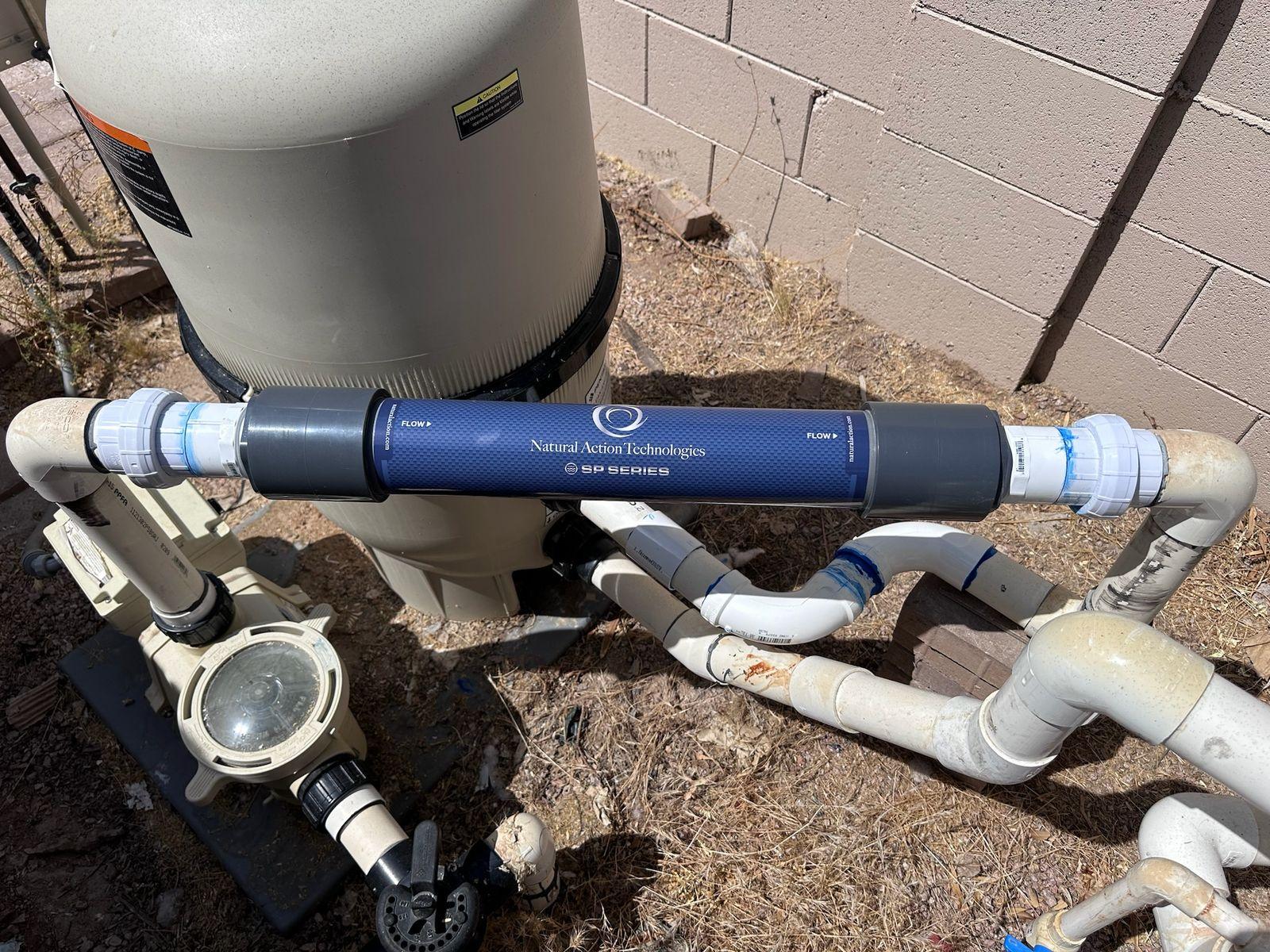

Natural Action inline structured water unit plumbed into the pool line beside the filter — An inline unit plumbed into the pool line beside the filter.

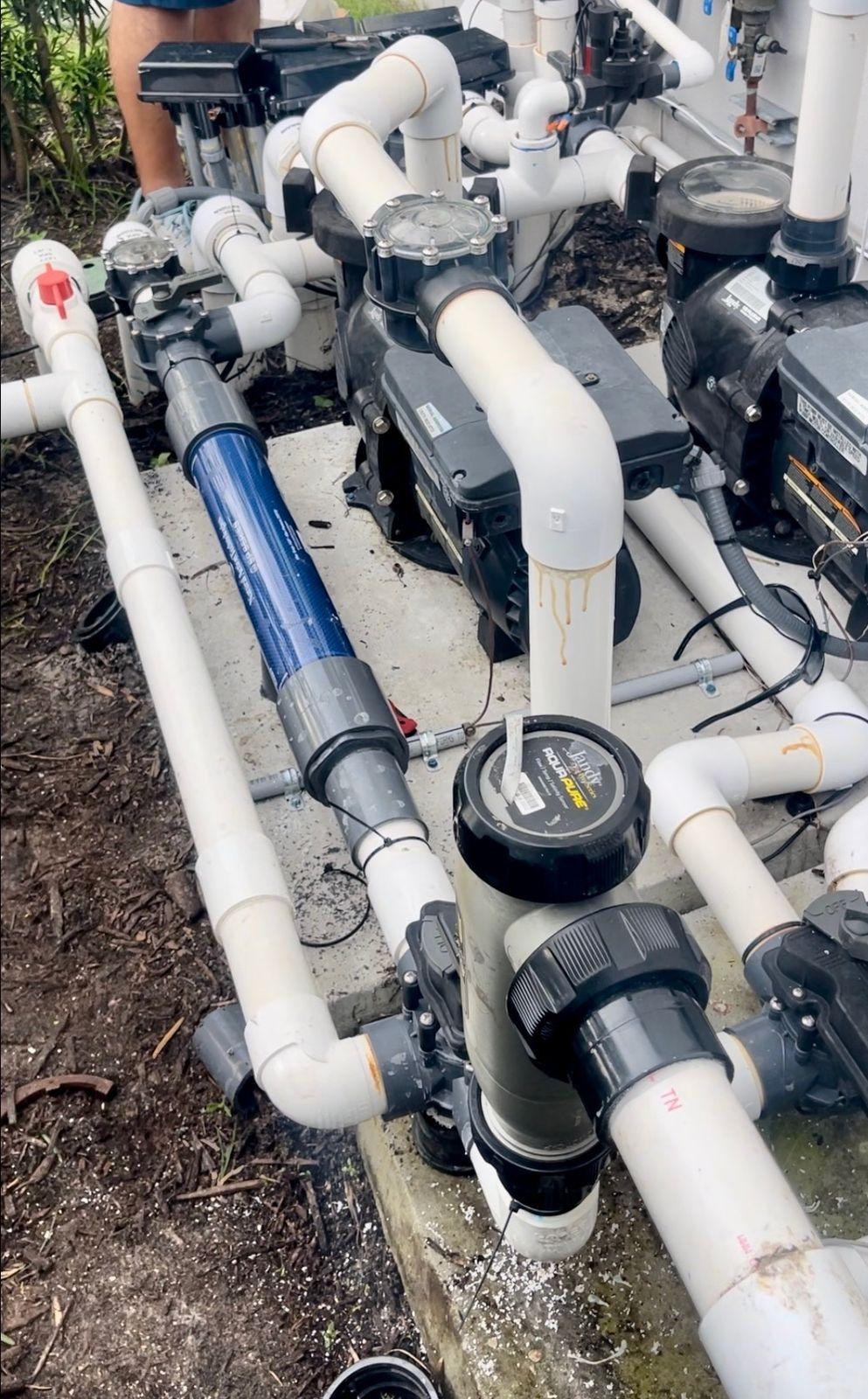

Pool equipment plumbing with a blue inline structured water unit on the line — The unit in place on the pool plumbing.

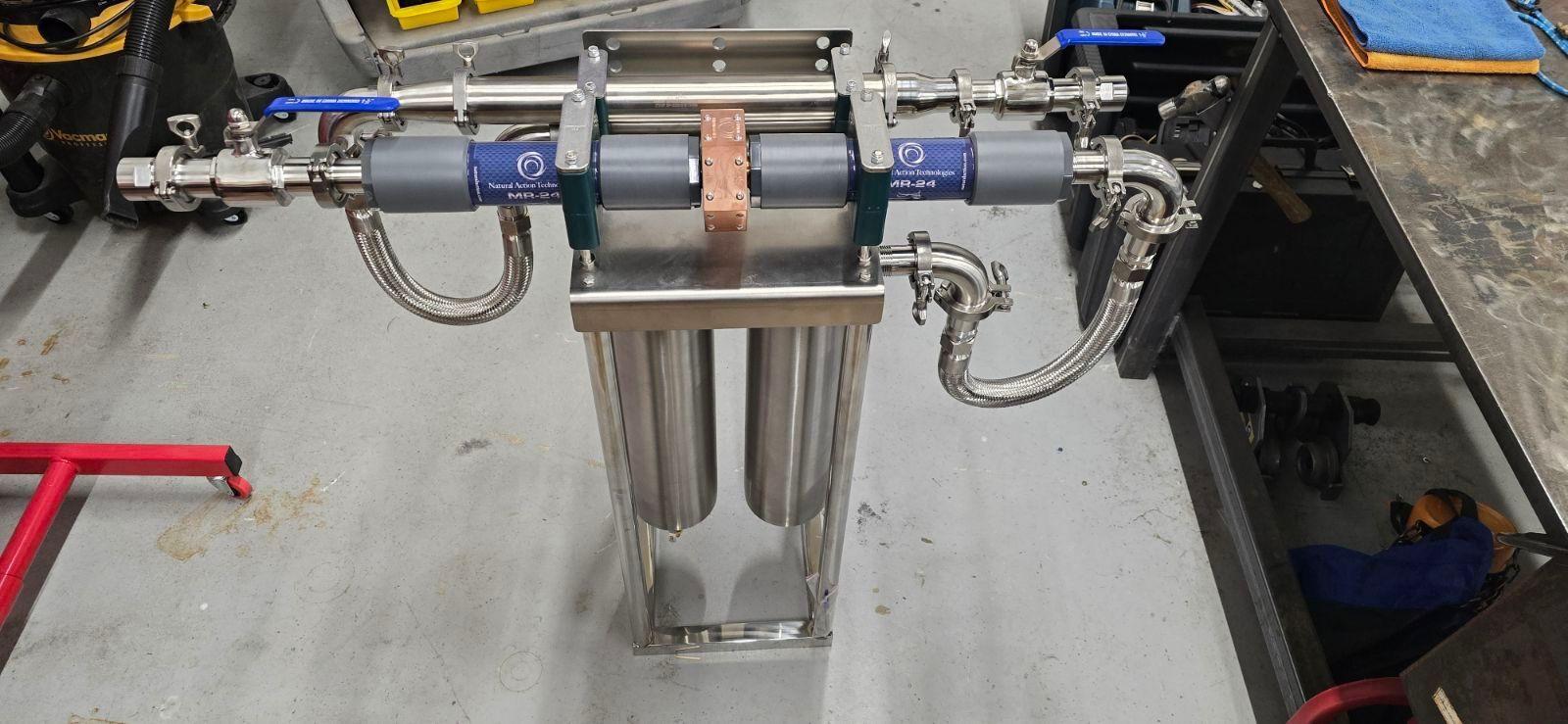

Stainless pool water assembly with inline units on a shop floor — A pool assembly built in the shop.

Backyard swimming pool in the desert — The finished pool.
